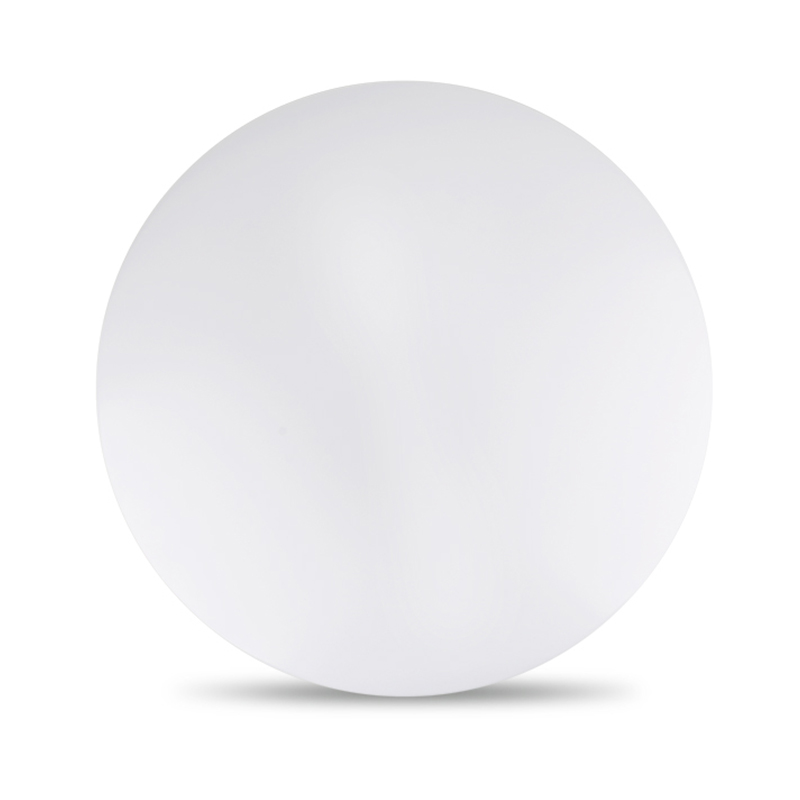

CL09-18-PR-02 18W LED Surface Mounted Ceiling Light

♦ 3-CCT changeable.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 3-year guarantee.

Email: info@nm-led.com

Tel: +86 75527615054

CL09-18-PR-02 18W LED Surface Mounted Ceiling Light

CL09-18-PR-02 Data Sheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Technical Data
Input Voltage/Hz	AC200-240V 50/60Hz
Output Voltage/Current	DC110V/130mA
Power	18W
Rated Input Current	0.09A
PF value	≥0.9
Ingress Protection	IP54
Operating Temperature	-10-40℃
Dimmability	Triac dimmable with DIMMATE driver

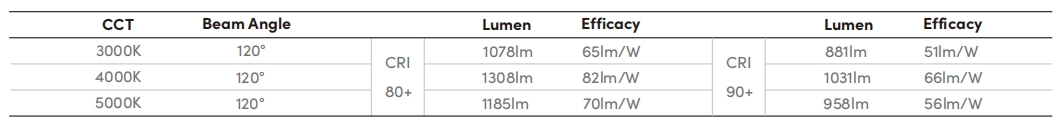

Optical Data
LED Brand	Bridgelux LED
CRI	Ra>80, Ra>90
Beam Angle	120°
Colour temperature	3000K-4000K-5000K
System luminous efficacy up to 82lm/W

Packaging
Box Dimensions	L360×W95×H360mm
Box Net Weight	0.708kg
Box Gross Weight	0.843kg
Carton Dimensions	L500×W380×H385mm/5PCS
Carton Net Weight	3.540kg
Carton Gross Weight	5.273kg

Technical Data Download

CL09-18-PR-02 Technical Data
