DL52-09-XX-04 9W LED Recessed Downlight



♦  Maximum 45°vertical rotation can be created on the main body.
♦  Optic interchangeable.
♦  Power selectable.
♦  Flicker-free internal driver.
♦  Compatible with leading and trailing edge phase cut dimmers.
♦  5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC34V/210mA(9W)|DC33V/145mA(6W)
Power 9W|6W
Rated Input Current 0.045A
THD <25%(9W) | <35%(6W)
PF value >0.9(9W) | >0.8(6W)
Ingress Protection IP20
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver

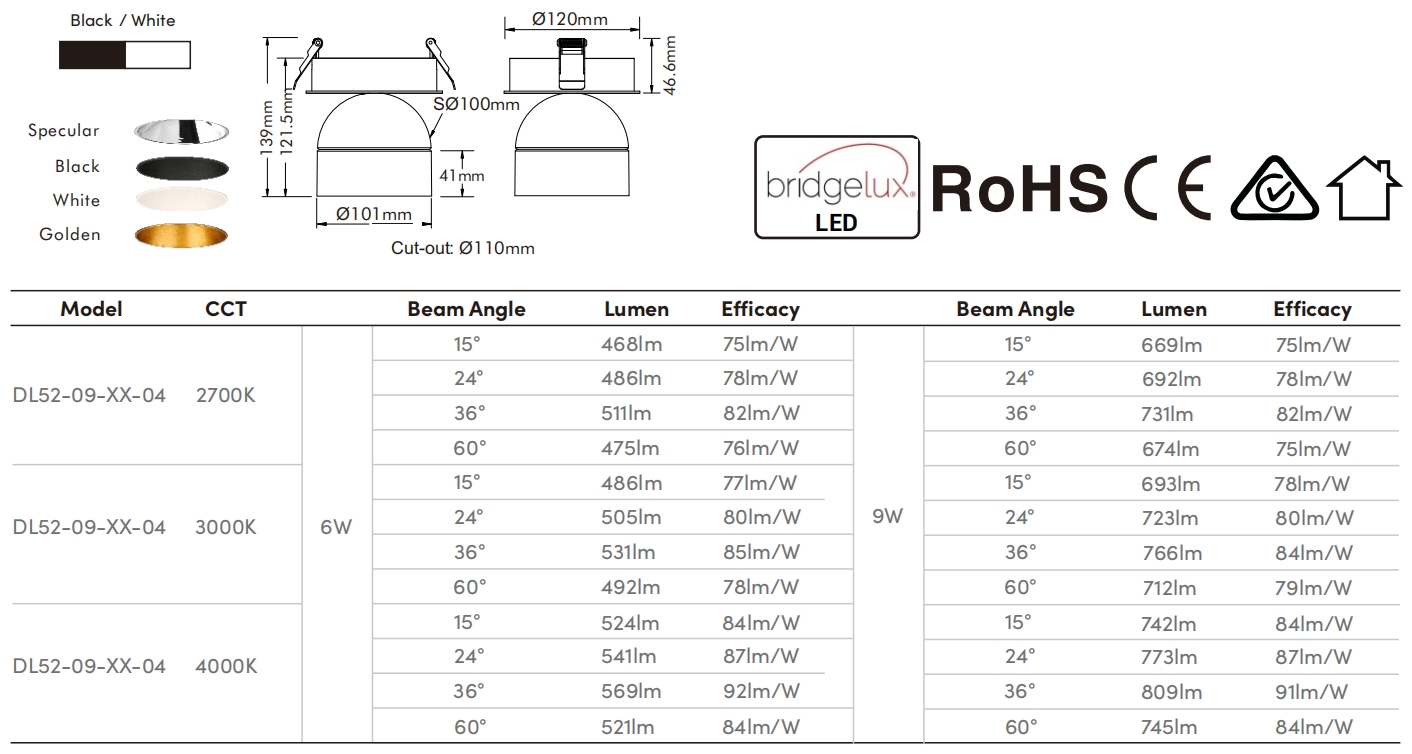

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>90
Beam Angle  15°/24°/36°/60°
Colour temperatures  2700K/3000K/4000K
System luminous efficacy up to 92lm/W
