♦ Modular Design.
♦ System power up to 30W.
♦ Interchangeable beam.
♦ Interchangeable anti-glare reflector.
♦ 5-year guarantee.
Technical Data | |
Input Voltage/Hz | AC200-240V 50/60Hz |
Output Voltage/Current | DC36V/580mA |
Power | 23W |
Rated Input Current | 0.115A |
THD | <20% |
PF value | >0.9 |
Protection Rated | IP20 |
Operating Temperature | -10-40℃ |
Dimmability | Non-dimmable with ACTEC driver |

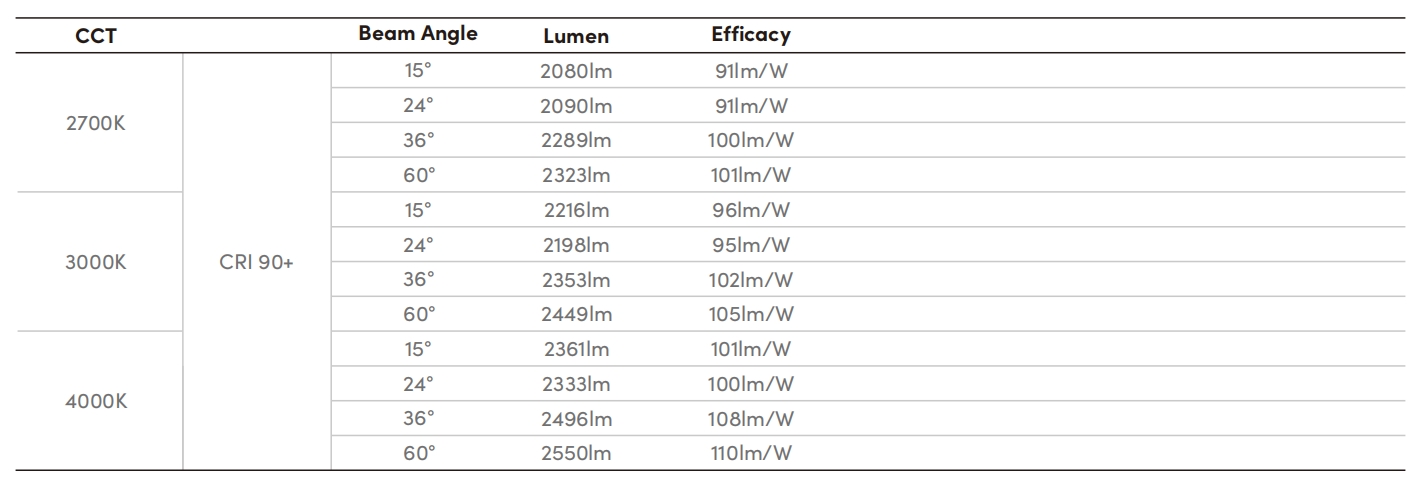

Optical Data | |
LED Brand | Bridgelux COB LED |
CRI | Ra>90 |
Beam Angle | 15°/24°/36°/60° |
Colour temperatures | 2700K/3000K/4000K |
System luminous efficacy up to 108lm/W |
Packaging | |
Box Dimensions | L197×W197×H240mm |
Box Net Weight | 1.41kg |
Box Gross Weight | 1.66kg |
Carton Dimensions | L605×W410×H505mm/12PCS |
Carton Net Weight | 16.92kg |
Carton Gross Weight | 21.02kg |
