SD08-25-XX-01 23W LED Surface Mounted Light
♦ Modular Design.
♦ System power up to 30W.
♦ Interchangeable beam.
♦ Interchangeable anti-glare reflector.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC36V/600mA |
| Power | 23W |
| Rated Input Current | 0.115A |
| THD | <20％ |
| PF value | >0.9 |
| Protection Rated | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | Non-dimmable with AcTEC driver |
| LED and Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | ＞90 |
| SDCM | <6 |
| Beam Angle | 15°/24°/36°/60° |
| Colour temperature | 2700K/3000K/4000K |

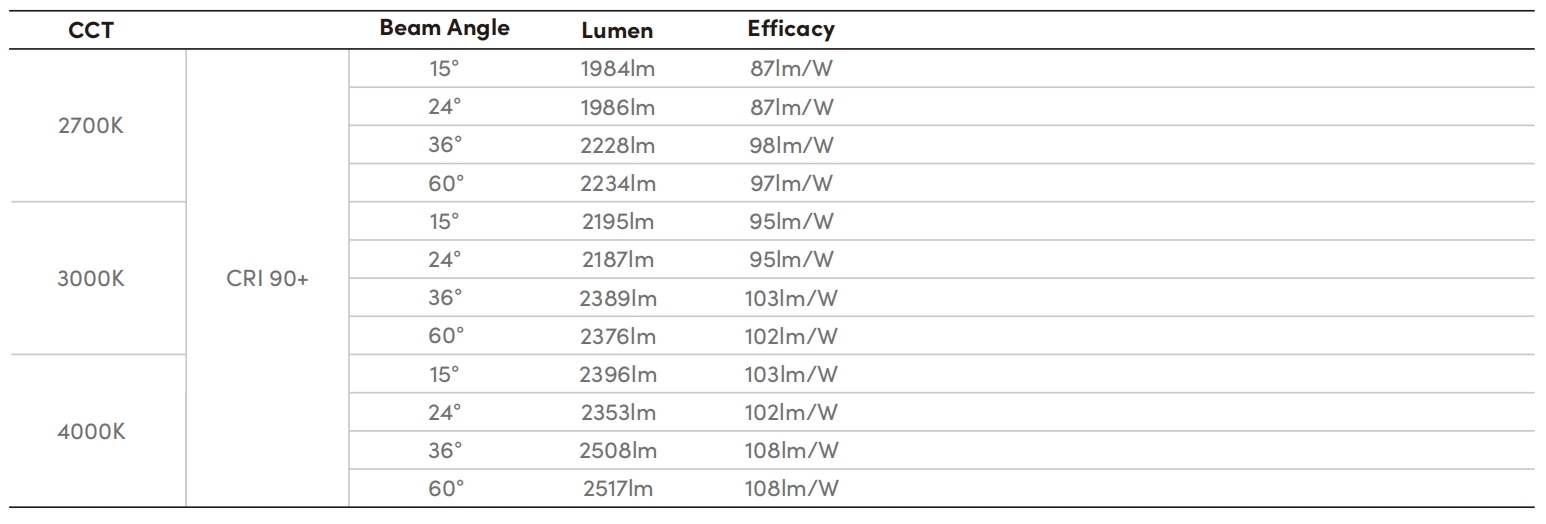

| System luminous efficacy up to 108lm/W | |
| Packaging | |
| Box Dimensions | L155×W155×H200mm |
| Box Net Weight | 1.55kg |
| Box Gross Weight | 1.82kg |
| Carton Dimensions | L480×W325×H425mm/12PCS |
| Carton Net Weight | 18.6kg |
| Carton Gross Weight | 22.5kg |
Technical Data Download
