SD08-25-XX-02 23W LED Surface Mounted Light



♦ Modular Design.
♦ System power up to 30W.
♦ Interchangeable beam.
♦ Interchangeable anti-glare reflector.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC36V/580mA
Power 23W
Rated Input Current 0.115A
THD <20%
PF value >0.9
Protection Rated  IP20
Operating Temperature -10-40℃
Dimmability Non-dimmable with AcTEC driver

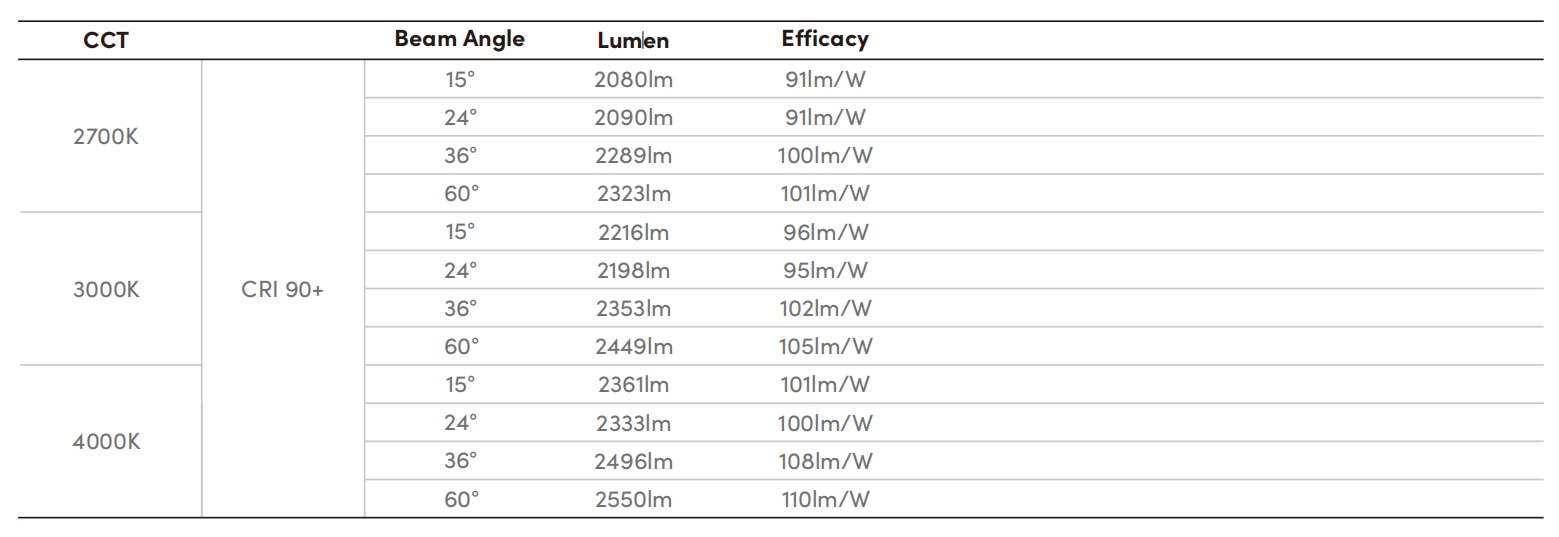

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>90
Beam Angle  15°/24°/36°/60°
Colour temperature 2700K/3000K/4000K
System luminous efficacy up to 108lm/W



Packaging
Box Dimensions L196×W196×H150mm
Box Net Weight 1.06kg
Box Gross Weight 1.3kg
Carton Dimensions L605×W410×H325mm/12PCS
Carton Net Weight 12.72kg
Carton Gross Weight 16.4kg

Technical Data Download
