TR05-30-XX-01 30W LED Surface Mounted Spot Light
♦ Flicker-free driver to create healthy lighting environment.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ Patented surface mounted box gives better friction on rotation and create pleasant gear noise.
♦ Variety of less-glare optic options.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC36V/710mA |
| Power | 30W |
| Rated Input Current | 0.150A |
| PF value | >0.9 |
| THD | <10% |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |

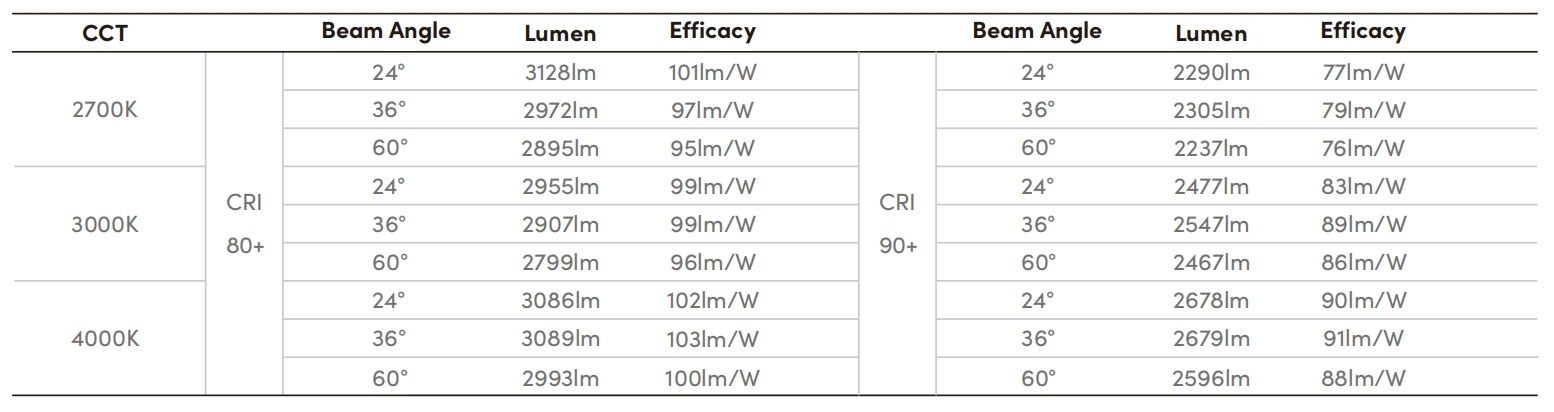

| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>80, Ra>90 |
| Beam Angle | 24°/36°/60° |
| Colour temperature | 2700K/3000K/4000K |
| System luminous efficacy up to 108lm/W | |
| Packaging | |
| Box Dimensions | L113×W97×H312mm |
| Box Net Weight | 1.028kg |
| Box Gross Weight | 1.123kg |
| Carton Dimensions | L500×W355×H325mm/15PCS |
| Carton Net Weight | 15.42kg |
| Carton Gross Weight | 17.65kg |
Technical Data Download
