DL56-10-TW-01 10W LED Downlight
♦ Tiltable 30° in all directions.
♦ Insulation coverable directly.
♦ Beam angle interchangeable.
♦ Honeycomb optional.
♦ Power selectable.
♦ Easy loop in&out.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC30-40V/230mA(Max) DC30-40V/180mA(Min) |
| Power | 10W(Max), 8W(Min) |
| Rated Input Current | 50mA |
| THD | <25% |
| PF value | >0.9 |
| Ingress Protection | IP65 |
| Operating Temperature | -10-40℃ |
| Dimmability | DALI dimmable with ACTEC driver |
| Lifespan L70/B50 at 25℃ | >100000h |
| Lifespan L90/B10 at 25℃ | 46000h |

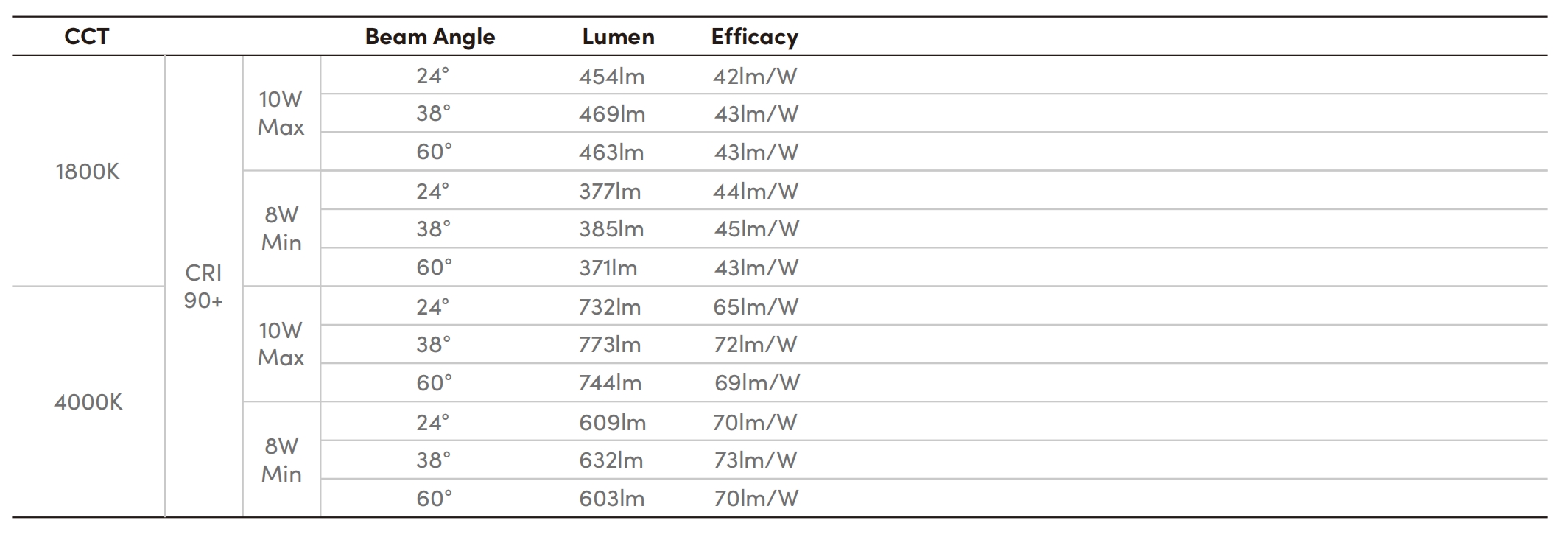

| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>90 |
| SDCM | ≤6 |
| Beam Angle | 24°/38°/60° |
| Colour temperature | 1800K-4000K |
| System luminous efficacy up to 73lm/W | |
| Packaging | |
| Box Dimensions | L160×W130×H75×T2mm |
| Box Net Weight | 0.473kg |
| Box Gross Weight | 0.535kg |
| Carton Dimensions | L405×W335×H325mm/24PCS |
| Carton Net Weight | 11.35kg |
| Carton Gross Weight | 13.4kg |
Technical Data Download
