DL56-10-XX-02 10W LED Downlight

♦ Tiltable 30° in all directions.
♦ Insulation coverable directly.
♦ Beam angle interchangeable.
♦ Honeycomb optional.
♦ Power selectable.
♦ Easy loop in&out.
♦ 5-year guarantee.

Email: info@nm-led.com

Tel: +86 75527615054

DL56-10-XX-02 10W LED Downlight

DL56-10-XX-02 Data Sheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Technical Data
Input Voltage/Hz	AC200-240V 50/60Hz
Output Voltage/Current	DC30-40V/230mA(Max) DC30-40V/185mA(Min) DC30-40V/230mA(Max)(DALI) DC30-40V/180mA(Min)(DALI)
Output Voltage/Current
Power	10W(Max), 8W(Min)
Rated Input Current	50mA
THD	<25%
PF value	>0.9
Ingress Protection	IP65
Operating Temperature	-10-40℃
Dimmability	Triac dimmable with DIMMATE driver DALI dimmable with ACTEC driver
Dimmability
Lifespan L70/B50 at 25℃	>100000h
Lifespan L90/B10 at 25℃	>100000h

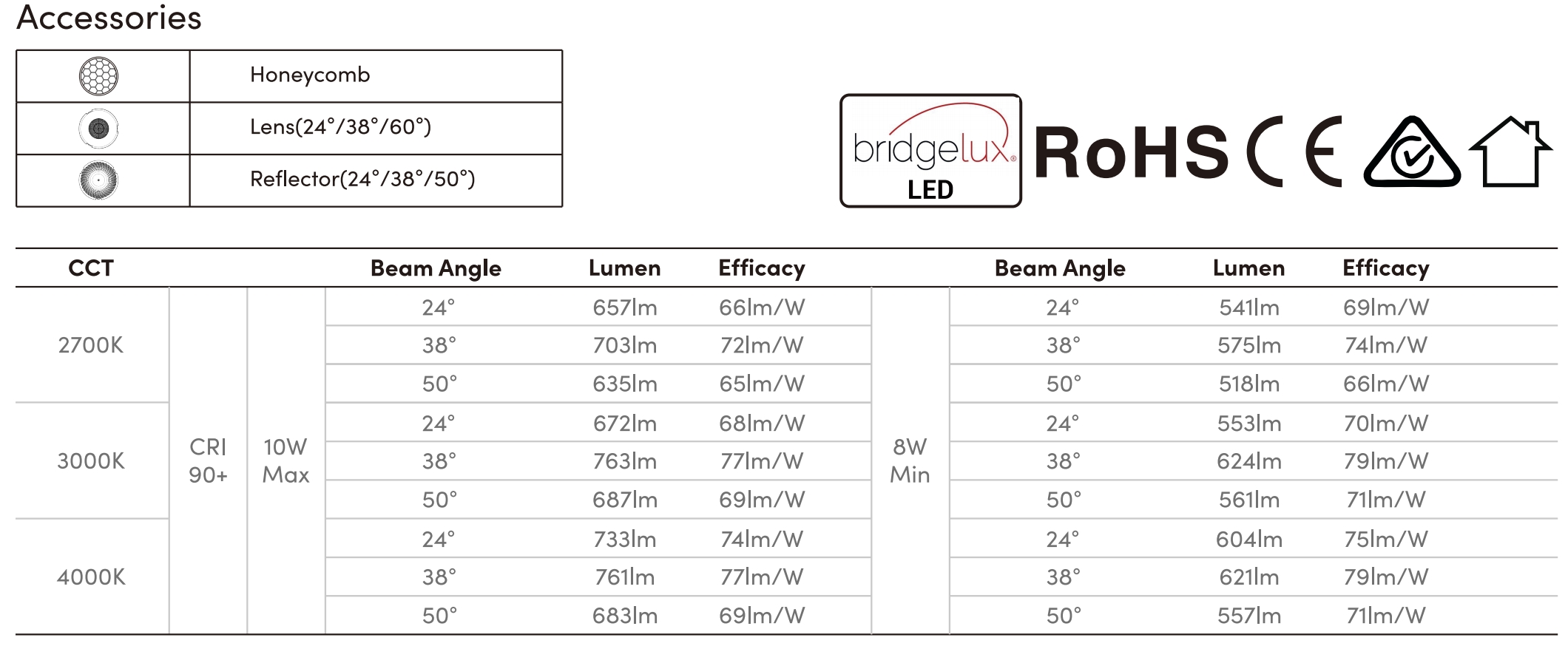

LED and Optical Data
LED Brand	Bridgelux COB LED
CRI	>90
SDCM	≤3
Beam Angle	24°/38°/50°
Colour temperature	2700K/3000K/4000K
System luminous efficacy up to 79lm/W

Packaging
Box Dimensions	L130×W130×H75×T2mm
Box Net Weight	0.369kg
Box Gross Weight	0.422kg
Carton Dimensions	L405×W275×H350mm/24PCS
Carton Net Weight	8.86kg
Carton Gross Weight	10.5kg

Packaging(DALI)
Box Dimensions	L160×W130×H75×T2mm
Box Net Weight	0.473kg
Box Gross Weight	0.535kg
Carton Dimensions	L405×W355×H325mm/24PCS
Carton Net Weight	11.35kg
Carton Gross Weight	13.4kg
