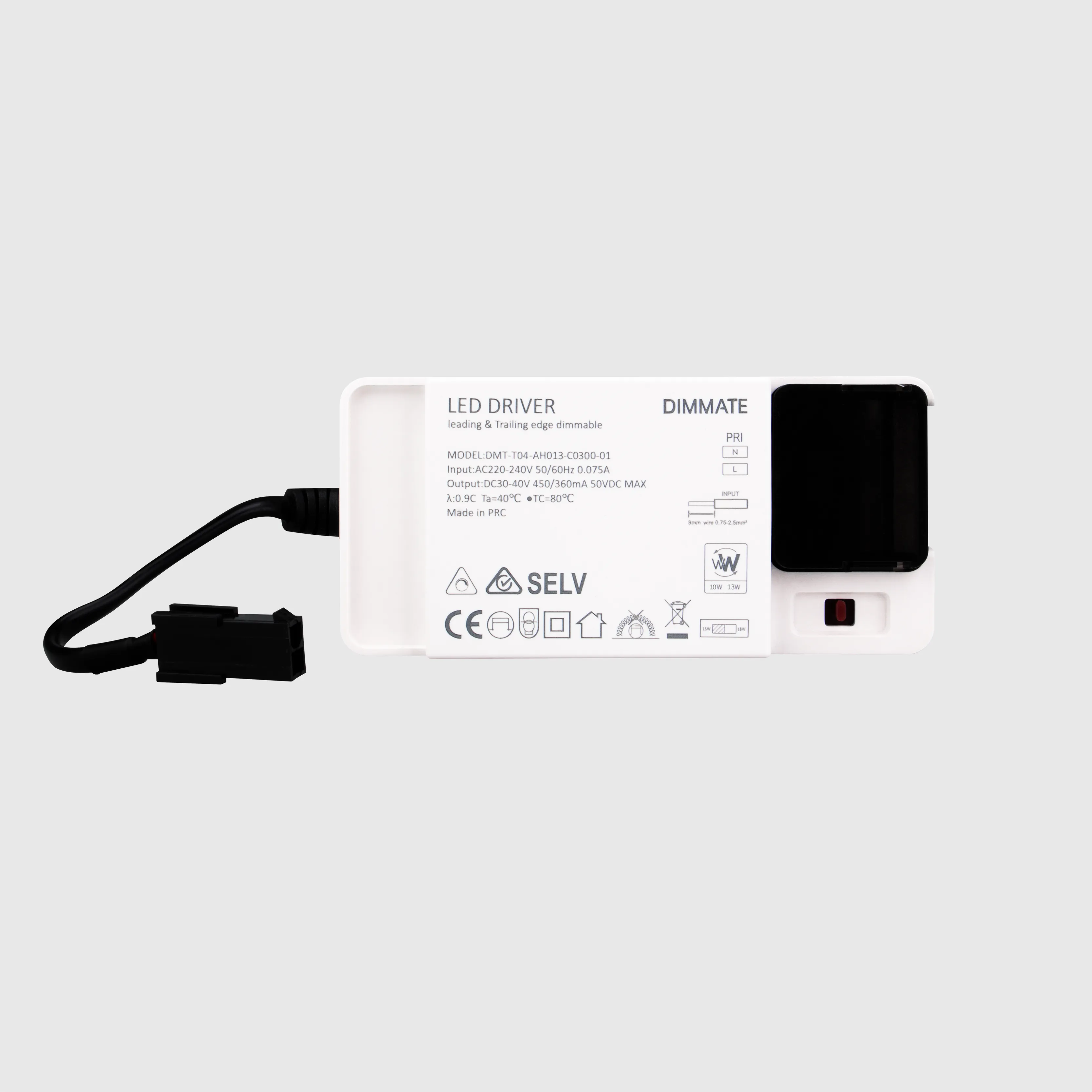

DMT-T04-AH013-C0300-01 02 LED Driver

♦ DMT-T04-AH013-C0300-01 (Push buttom)
♦ DMT-T04-AH013-C0300-02 (Screw terminal)

Email: info@nm-led.com

Tel: +86 75527615054

DMT-T04-AH013-C0300-01 02 LED Driver

DMT-T04-AH013-C0300-01 02 Data Sheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Technical Data
Electrical Rating	Ⅱ
Rated Input Voltage	AC240V
Rated Input Voltage	AC240V
Input Voltage Range	AC200-264V
Rated Input Frequency	50/60Hz
Input Frequency Range	47-63Hz
Rated Input Current (Full Output Power, Rated Input Voltage)	0.054A
Rated Input Power (Rated Output Power, Rated Input Voltage)	10/13W
Efficiency (Full Load, Rated Input Voltage)	82%
PF (Full Output Power, Rated Input Voltage)	<0.9
Standby Power Consumption	-
Surge Current	2.52A
THD	<25%
Rated Output Current	230mA/300mA
Output Current Tolerance	±5%
Output LF Current Ripple (Ripple = peak / average, < 3kHz)	2.3%
Output Voltage Range	30-40V 230mA 30-38V 300mA
Output Power	9.2-11.4W
Pst-LM	≤1
SVM	≤0.4
Dimming	Triac dimmable
Output Short Circuit Protection	Yes
Output Open Load Protection	Yes
Output Overvoltage Protection	-
Output Overcurrent Protection	Yes
Output Over Temperature Protection	Yes
Ingress Protection	-
Lifetime	43,800h
Guarantee	5 years

Operational temperatures and humidity
Operating Temperature	0-40℃
Operating Humidity	0—95%RH，No Condensation
Storage Temperature	-20-70℃
Storage Humidity	0—95%RH，No Condensation

Packaging
Carton Dimensions	-
Diver Weight	108g
Carton Gross Weight	-
