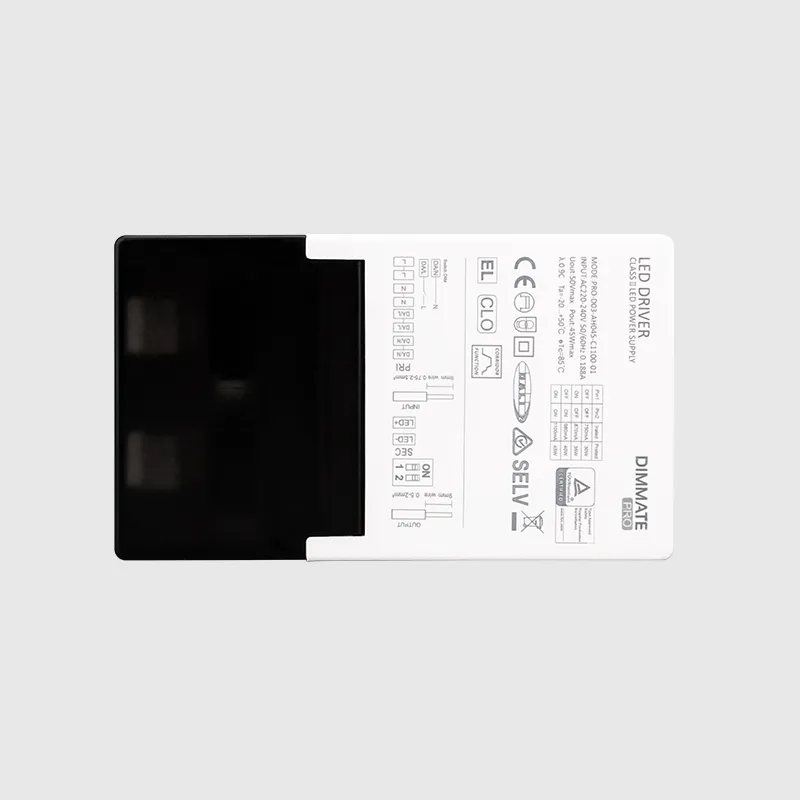

PRO-D03-AH045-C01100-01 LED Driver

Email: info@nm-led.com

Tel: +86 75527615054

PRO-D03-AH045-C01100-01 LED Driver

PRO-D03-AH045-C1100-01 Data Sheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

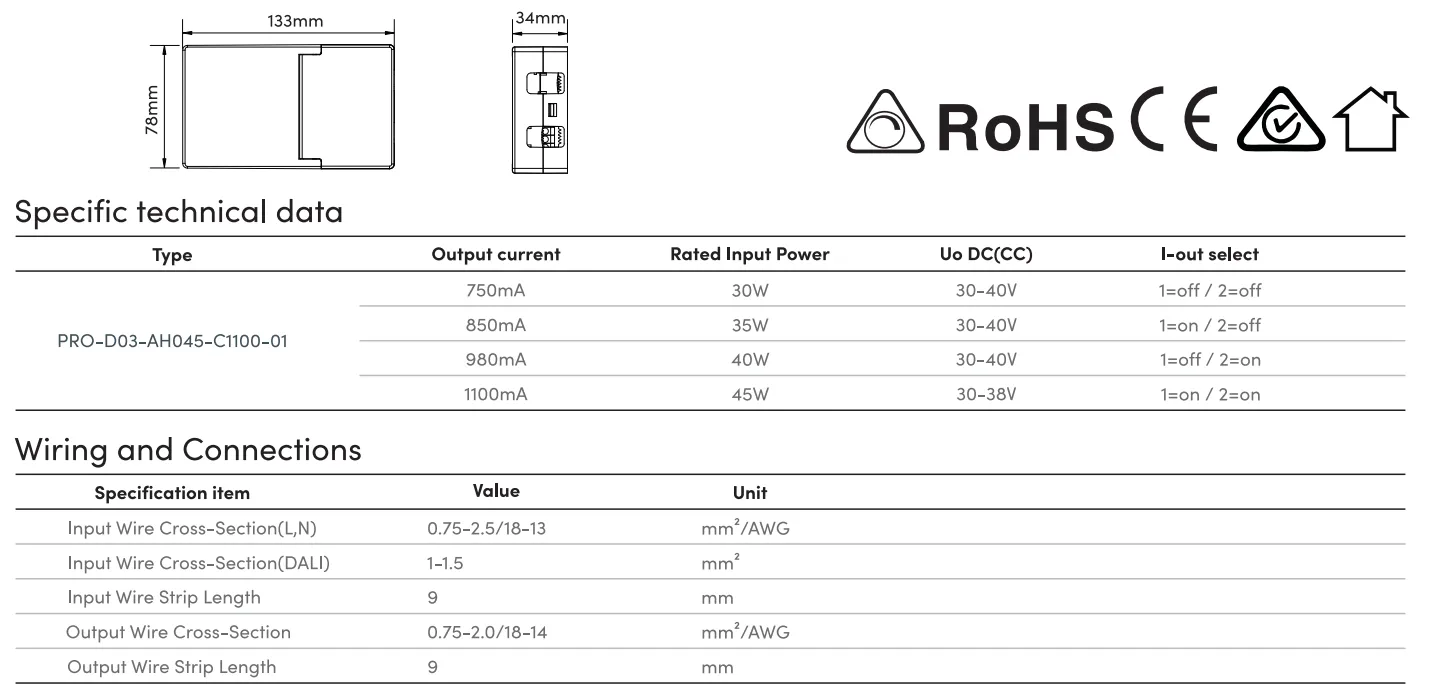

Technical Data
Electrical Rating	Ⅱ
Rated Input Voltage	AC240V DC220-240V
Rated Input Voltage	AC240V DC220-240V
Input Voltage Range	AC200-264V DC176-264V
Rated Input Frequency	50/60Hz
Input Frequency Range	47-63Hz
Rated Input Current (Full Output Power, Rated Input Voltage)	0.188A
Rated Input Power (Rated Output Power, Rated Input Voltage)	30/35/40/45W
Efficiency (Full Load, Rated Input Voltage)	87%
PF (Full Output Power, Rated Input Voltage)	<0.9
Standby Power Consumption	<0.5W
Surge Current	22.2A
THD	<10%
Rated Output Current	750/850/980/1100mA
Output Current Tolerance	±5%
Output LF Current Ripple (Ripple = peak / average, < 3kHz)	4.36%
Output Voltage Range	30-40V
Output Power	30-41.8W
Pst-LM	≤1
SVM	≤0.4
Dimming	DALI dimmable
Output Short Circuit Protection	Yes
Output Open Load Protection	Yes
Output Overvoltage Protection	Yes
Output Overcurrent Protection	Yes
Output Over Temperature Protection	Yes
Ingress Protection	-
Lifetime	67.649h
Guarantee	7 years

Operational temperatures and humidity
Operating Temperature	0-40℃
Operating Humidity	0—95%RH，No Condensation
Storage Temperature	-20-70℃
Storage Humidity	0—95%RH，No Condensation

Packaging
Carton Dimensions	-
Diver Weight	392g
Carton Gross Weight	-
