FUSION GT-TR01-AHD-020-COB-01SC 20W LED Track Light
♦ Power-selectable.
♦ Hassle-free maintenance with modular design.
♦ Interchangeable and functional lens available.
♦ Visual-comfort accessories available.
♦ 7-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC220-240V 50/60Hz |
| Output Voltage/Current | DC36V/490mA(20W) DC36V/370mA(15W) |
| Power | 20W | 15W |
| Rated Input Current | 0.083A(20W) | 0.063A(15W) |
| PF value | >0.9 |
| THD | <15% |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | DALI |
| L70/B50 at 25℃ | >160000H |
| L90/B10 at 25℃ | >103000H |

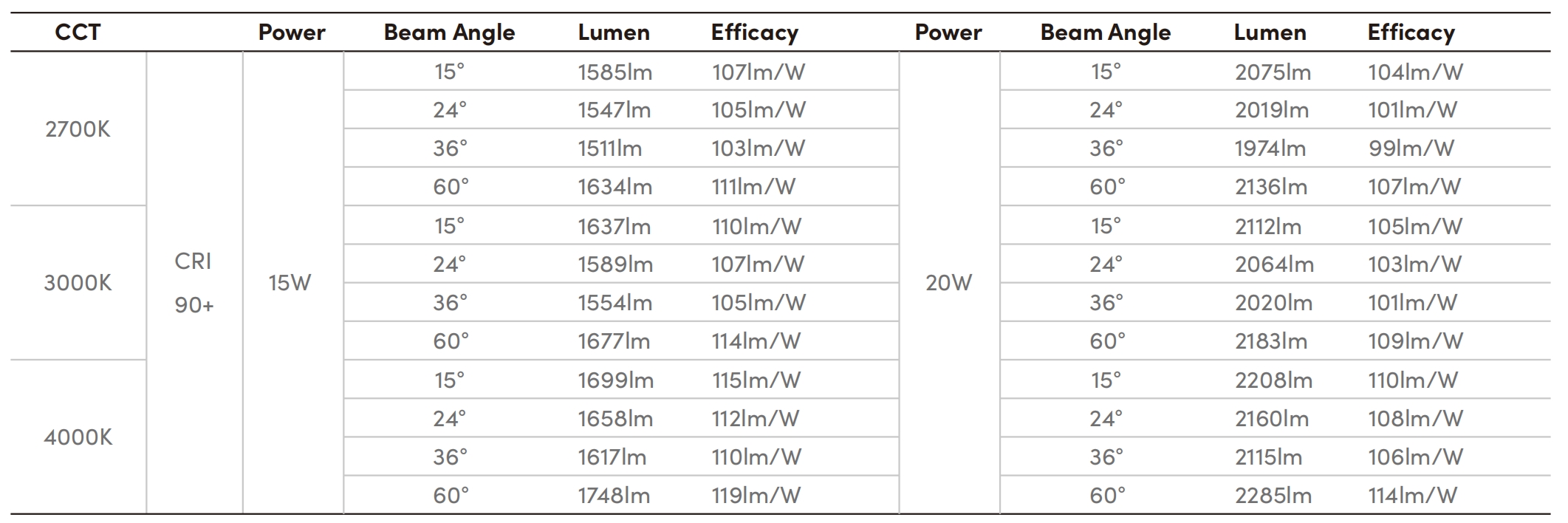

| LED and Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | >90 |
| SDCM | <6 |
| Beam Angle | 15°/24°/36°/60° |
| Colour temperatures | 2700K/3000K/4000K |
| System luminous efficacy up to 119lm/W | |
| Packaging | |
| Box Dimensions | L190×W105×H170×T2mm |
| Box Net Weight | 0.75Kg |
| Box Gross Weight | 0.86Kg |
| Carton Dimensions | L545×W395×H360mm/20PCS |
| Carton Net Weight | 15Kg |
| Carton Gross Weight | 18.5Kg |
