TR04-20-XX-01 20W LED Track Light

♦ Flicker-free driver to creates healthy lighting environment that make people enjoy photograph in any commercial occasions.
♦ Top performance in techincal level, THD<15, 94lm/W.
♦ Thoughtful friction on the track arm, get rid of loose track arm experience.
♦ Variety of optic options, make your choice flexible.
♦ Dimming capability. Suits triac dimmers including OPUS,Clipsal, HPM, Niko, Lumeo Domus, Lumeo Eco. The driver with CE, RCM and SAA certification.

Email: info@nm-led.com

Tel: +86 75527615054

TR04-20-XX-01 20W LED Track Light

TR04-20-XX-01 Data Sheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Technical Data
Input Voltage/Hz	AC200-240V 50/60Hz
Output Voltage/Current	DC36V/470mA
Power	20W
Rated Input Current	0.1A
THD	<15％
PF value	>0.95
Ingress Protection	IP20
Operating Temperature	-10-40℃
Dimmability	Triac dimmable with DIMMATE driver

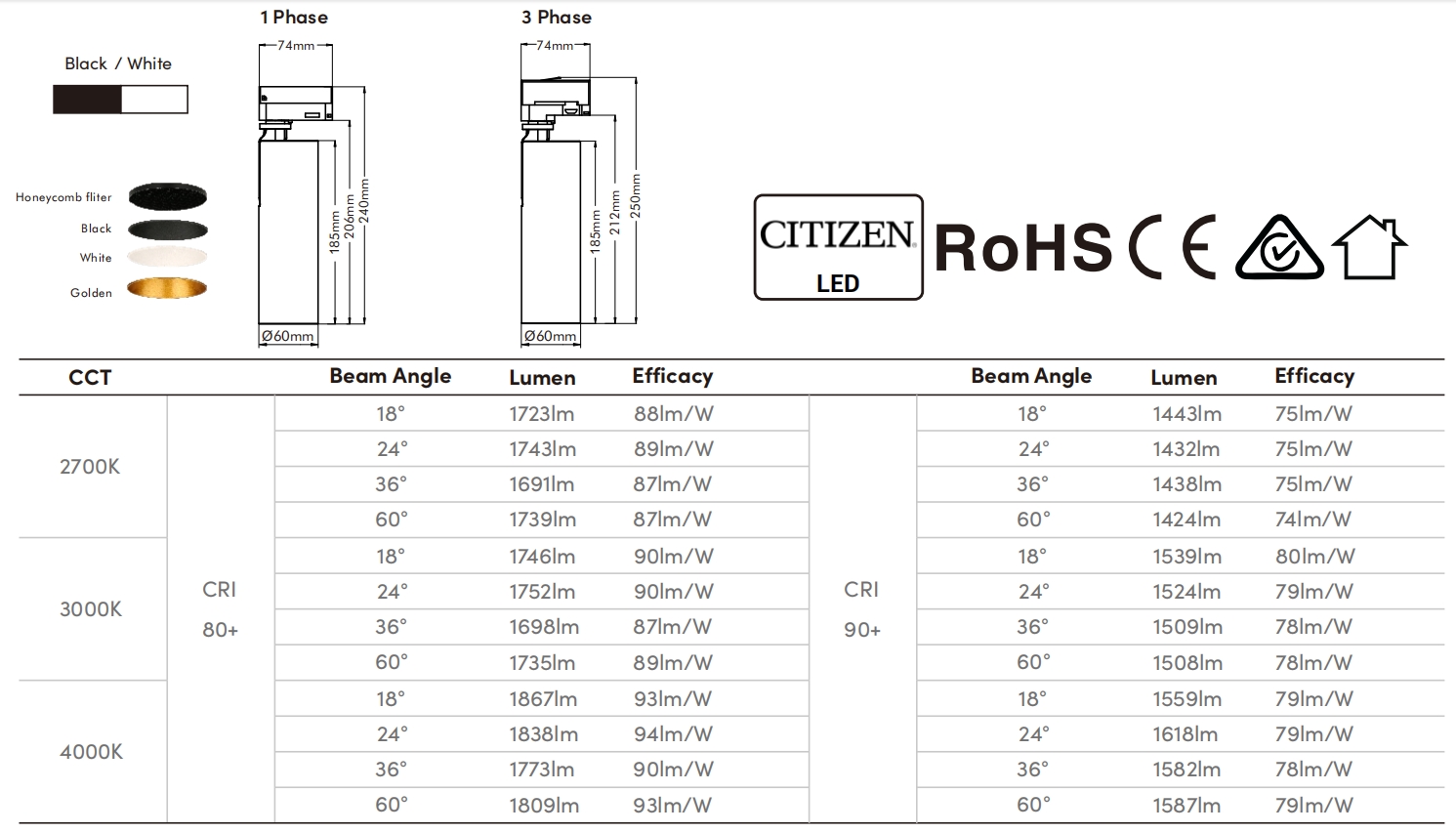

Optical Data
LED Brand	CITIZEN COB LED
CRI	Ra＞80，Ra＞90
Beam Angle	18°/24°/36°/60°
Colour temperatures	2700K/3000K/4000K
System luminous efficacy up to 94lm/W

Packing
Box Dimensions	L110 x W85 x H287 mm
Box Net Weight	0.7Kg
Box Gross Weight	0.75Kg
Carton Dimensions	L440 x W345 x H310 mm/15 PCS
Carton Net Weight	10.5Kg
Carton Gross Weight	12.0Kg

Technical Data Download

TR04-20-XX-01 Technical Data
