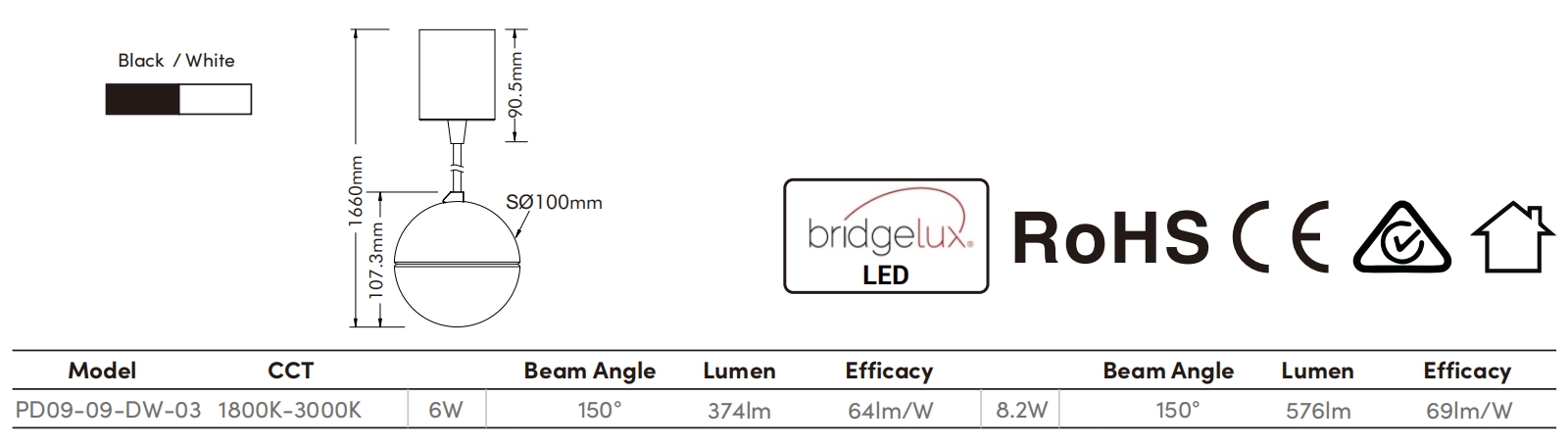

PD09-09-DW-03 9W LED Pendant Light
♦ Maximum 45°vertical rotation can be created on the main body.
♦ Optic interchangeable.
♦ Power selectable.
♦ Flicker-free internal driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC32.5V/210mA(8.2W) | DC31.5V/145mA(6W) |
| Power | 8.2W | 6W |
| Rated Input Current | 0.041A(8.2W) | 0.030A(6W) |
| THD | <25％(8.2W) | <35％(6W) |
| PF value | >0.9(8.2W) | >0.8(6W) |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |
| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra＞90 |
| Beam Angle | 150° |
| Colour temperatures | 1800K-3000K |
| System luminous efficacy up to 69lm/W | |
| Packaging | |
| Box Dimensions | L150×W150×H165mm |
| Box Net Weight | 0.649Kg |
| Box Gross Weight | 0.749Kg |
| Carton Dimensions | L465×W465×H350mm/18PCS |
| Carton Net Weight | 11.68Kg |
| Carton Gross Weight | 14.29Kg |
Technical Data Download
