♦ Maximum 45°vertical rotation can be created on the main body.
♦ Optic interchangeable.
♦ Power selectable.
♦ Flicker-free internal driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.

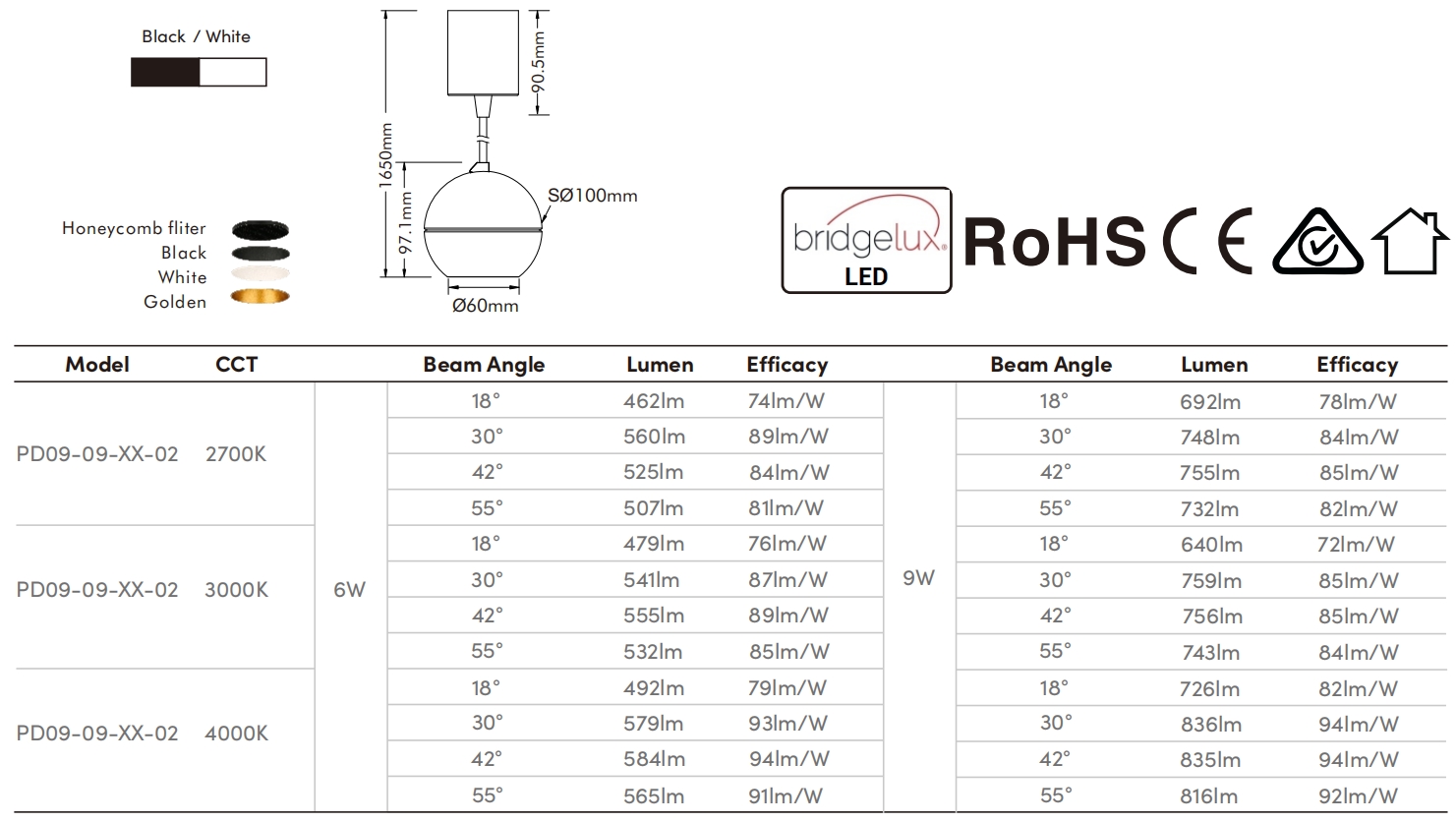

Technical Data | |
Input Voltage/Hz | AC200-240V 50/60Hz |
Output Voltage/Current | DC34V/210mA(9W)|DC33V/145mA(6W) |
Power | 9W|6W |
Rated Input Current | 0.045A |
THD | <25%(9W) | <35%(6W) |
PF value | >0.9(9W) | >0.8(6W) |
Ingress Protection | IP20 |
Operating Temperature | -10-40℃ |
Dimmability | Triac dimmable with DIMMATE driver |
Optical Data | |
LED Brand | Bridgelux COB LED |
CRI | Ra>90 |
Beam Angle | 18°/30°/42°/55° |
Colour temperatures | 2700K/3000K/4000K |
System luminous efficacy up to 94lm/W |
