SD09-09-DW-04 9W LED Surface Mounted Light



♦ Maximum 45°vertical rotation can be created on the main body.
♦ Optic interchangeable.
♦ Power selectable.
♦ Flicker-free internal driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

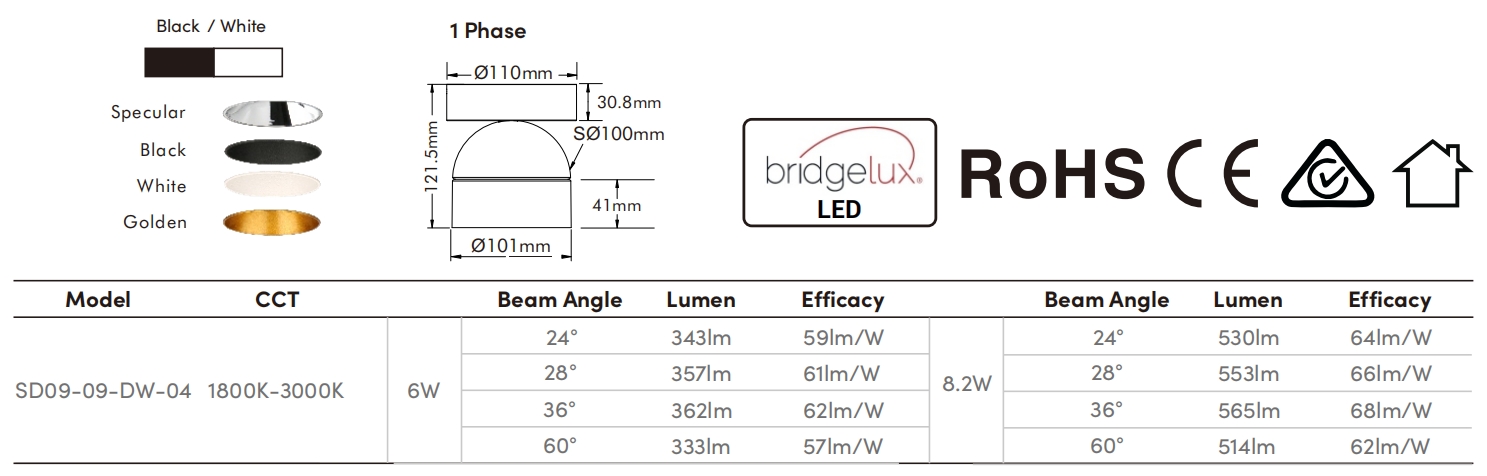

Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC35.2V/210mA(8.2W)|DC31.5V/145mA(6W)
Power 8.2W|6W
Rated Input Current 0.041A(8.2W) | 0.030A(6W)
THD <25%(8.2W) | <35%(6W)
PF value >0.9(8.2W) | >0.8(6W)
Ingress Protection IP20
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver



Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>90
Beam Angle  24°/28°/36°/60°
Colour temperatures  1800K-3000K
System luminous efficacy up to 68lm/W





Packaging
Box Dimensions L175×W165×H145mm
Box Net Weight 0.833Kg
Box Gross Weight 1.07Kg
Carton Dimensions  L540×W510×H315mm/18PCS
Carton Net Weight 14.99Kg
Carton Gross Weight 19.96Kg
