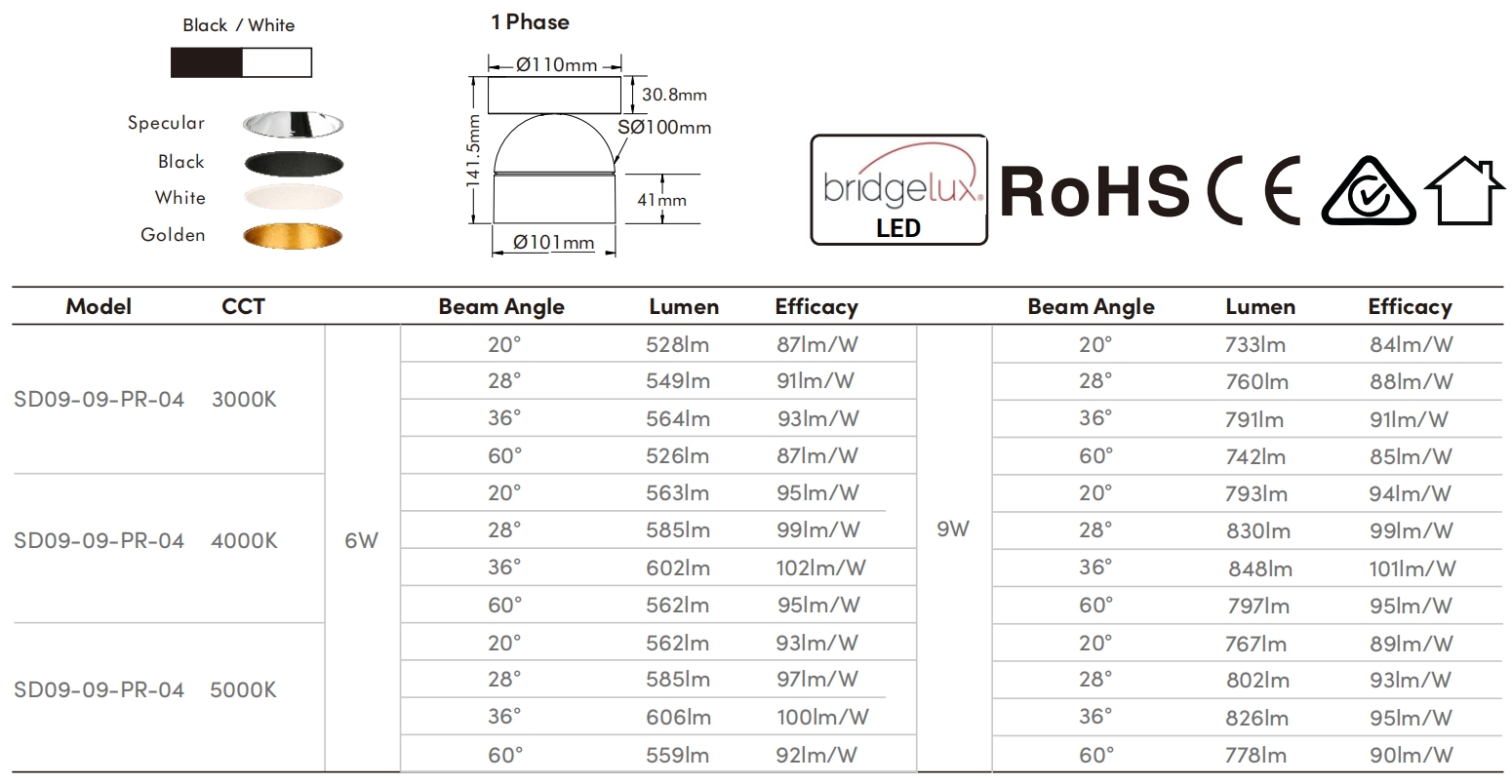

SD09-09-PR-04 9W LED Surface Mounted Light
♦ Maximum 45°vertical rotation can be created on the main body.
♦ Optic interchangeable.
♦ Power selectable.
♦ Flicker-free internal driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC34V/210mA(9W)|DC33V/145mA(6W) |
| Power | 9W|6W |
| Rated Input Current | 0.045A(9W) | 0.030A(6W) |
| THD | <25％(9W) | <35％(6W) |
| PF value | >0.9(9W) | >0.8(6W) |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |
| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra＞90 |
| Beam Angle | 20°/28°/36°/60° |
| Colour temperatures | 3000K-4000K-5000K |
| System luminous efficacy up to 102lm/W | |
| Packaging | |
| Box Dimensions | L175×W168×H145mm |
| Box Net Weight | 0.833Kg |
| Box Gross Weight | 1.07Kg |
| Carton Dimensions | L540×W510×H315mm/18PCS |
| Carton Net Weight | 14.99Kg |
| Carton Gross Weight | 19.96Kg |
Technical Data Download
