TR04-25-XX-03(DALI) 25W LED Track Light
♦ Controlled by in-track DALI-2 DT6 driver.
♦ Thoughtful friction on the track arm, get rid of loose track arm experience.
♦ Variety of less-glare optic options.
♦ 5-year guarantee.
.jpg)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC35V/590mA |
| Power | 25W(HEP DALI) | 26W(TRIDONIC DALI) |
| Rated Input Current | 0.125A(HEP DALI) | 0.13A(TRIDONIC DALI) |
| THD | <13% |
| PF value | >0.8(HEP DALI) | >0.88(TRIDONIC DALI) |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | HEP (with NFC) DALI TRIDONIC DALI |

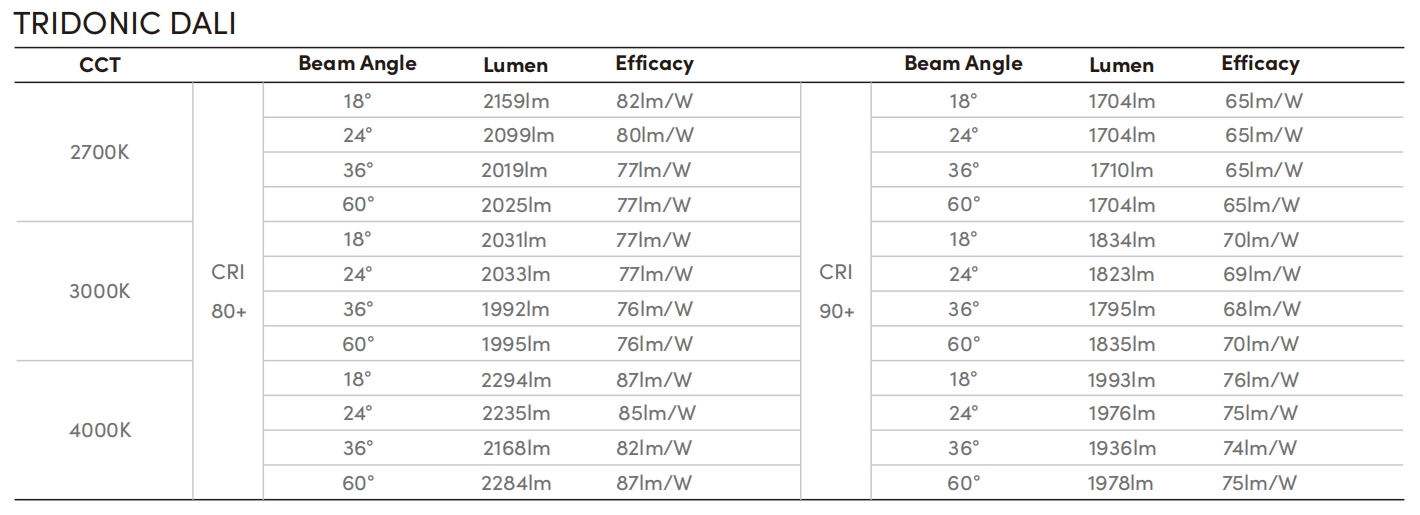

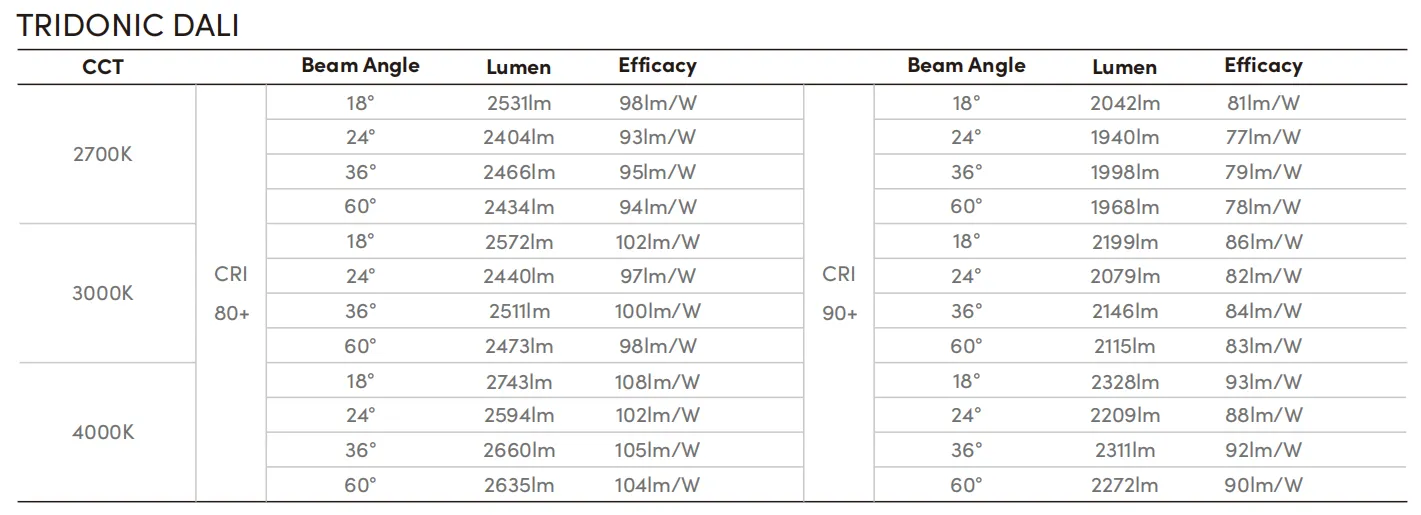

| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>80, Ra>90 |
| Beam Angle | 18°/24°/36°/60° |
| Colour temperature | 2700K/3000K/4000K |
| System luminous efficacy up to 92lm/W | |
| Packaging | |
| Box Dimensions | L296×W198×H68mm |
| Box Net Weight | 0.428kg |
| Box Gross Weight | 0.546kg |
| Carton Dimensions | L610×W310×H292mm/12PCS |
| Carton Net Weight | 5.136kg |
| Carton Gross Weight | 6.552kg |
