DL50-15-XX-01 14.2W LED Recessed Downlight Light



♦ Modular Design.
♦ System power up to 20W.
♦ Interchangeable anti-glare reflector.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC36V/350mA
Power 14.2W
Rated Input Current 0.071A
THD <6%
PF value >0.9
Protection Rated  IP54
Operating Temperature -10-40℃
Dimmability Non-dimmable with PHILIPS driver

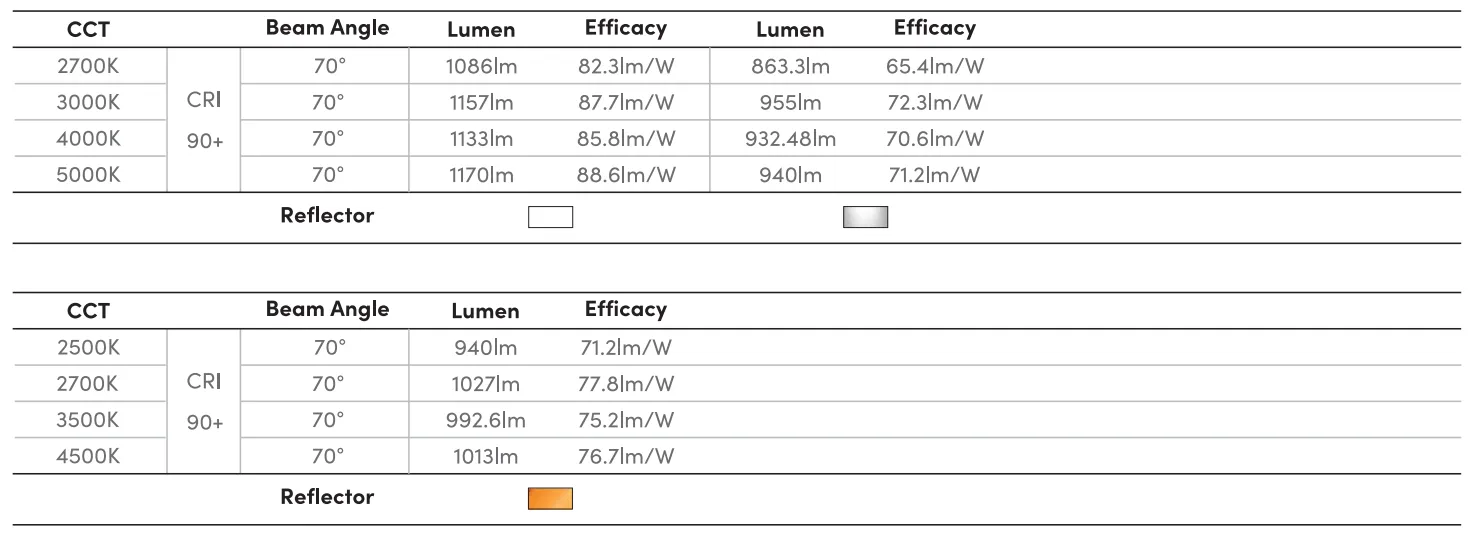

Optical Data
LED Brand  Bridgelux SMD LED
CRI  Ra>90
Beam Angle  70°
Colour temperatures  2700K/3000K/4000K/5000K
2500K/2700K/3500K/4500K
System luminous efficacy up to 80.2lm/W



Packaging
Box Dimensions L165×W145×H133mm
Box Net Weight 0.70kg
Box Gross Weight 0.82kg
Carton Dimensions L450×W345×H555mm/24PCS
Carton Net Weight 16.8kg
Carton Gross Weight 20.48kg
