TR06-20-XX-01 20W LED Recessed Spot Light

♦ Flicker-free driver to creates healthy lighting environment.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ Patented recessed case gives better friction on rotation and create pleasant gear noise.
♦ Installation-friendly spring to protect installer and ceiling.
♦ Variety of less-glare optic options.
♦ 5-year guarantee.

Email: info@nm-led.com

Tel: +86 75527615054

TR06-20-XX-01 20W LED Recessed Spot Light

TR06-20-XX-01 Data Sheet.pdf

TR06-20-XX-01(Bridgelux) Data Sheet.pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Description

Technical Data
Input Voltage/Hz	AC200-240V 50/60Hz
Output Voltage/Current	DC36V/470mA
Power	20W
Rated Input Current	0.1A
PF value	>0.95
THD	<15%
Ingress Protection	IP20
Operating Temperature	-10-40℃
Dimmability	Triac dimmable with DIMMATE driver

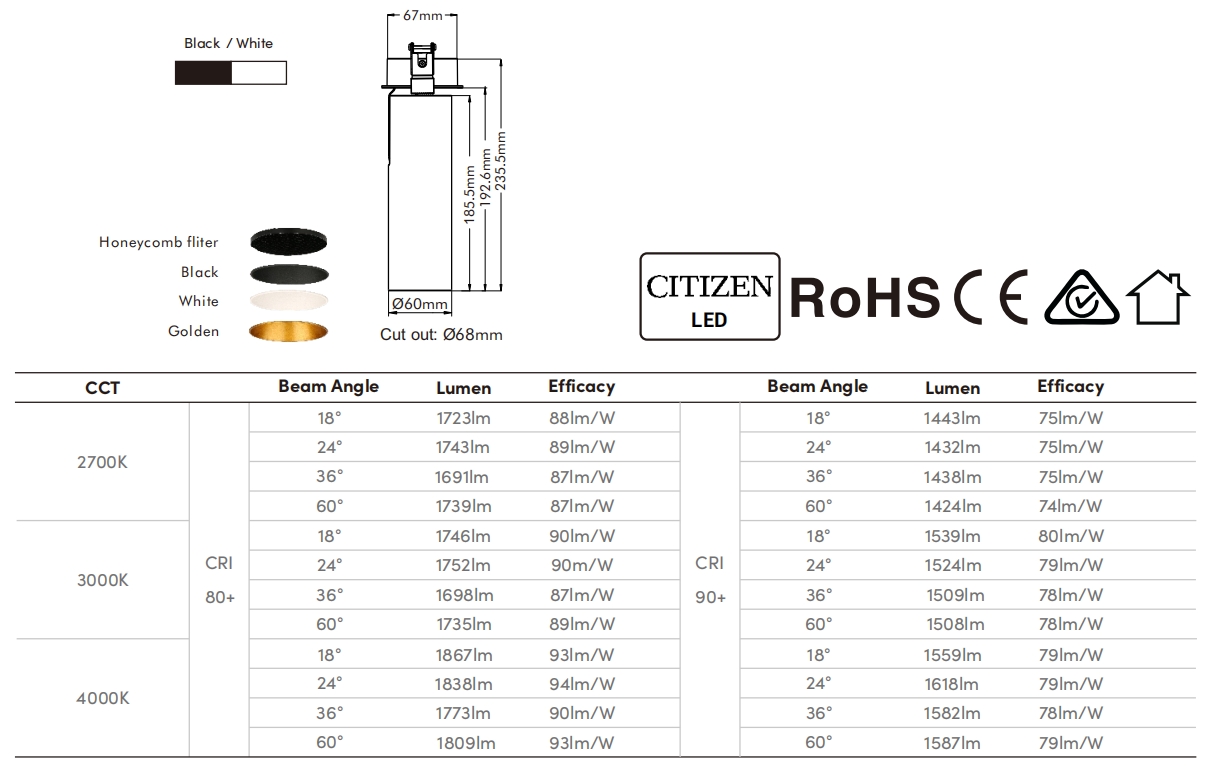

Optical Data
LED Brand	CITIZEN COB LED
CRI	Ra>80, Ra>90
SDCM	<6
Beam Angle	18°/24°/36°/60°
Colour temperature	2700K/3000K/4000K
System luminous efficacy up to 94lm/W

Packaging
Box Dimensions	L110×W85×H287mm
Box Net Weight	0.785kg
Box Gross Weight	0.856kg
Carton Dimensions	L440×W345×H310mm/15PCS
Carton Net Weight	11.78kg
Carton Gross Weight	13.64kg

Technical Data Download

TR06-20-XX-01 Technical Data

TR06-20-XX-01(Bridgelux) Technical Data
