♦ Flicker-free driver to creates healthy lighting environment.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ Patented recessed case gives better friction on rotation and create pleasant gear noise.
♦ Installation-friendly spring to protect installer and ceiling.
♦ Variety of less-glare optic options.
♦ 5-year guarantee.

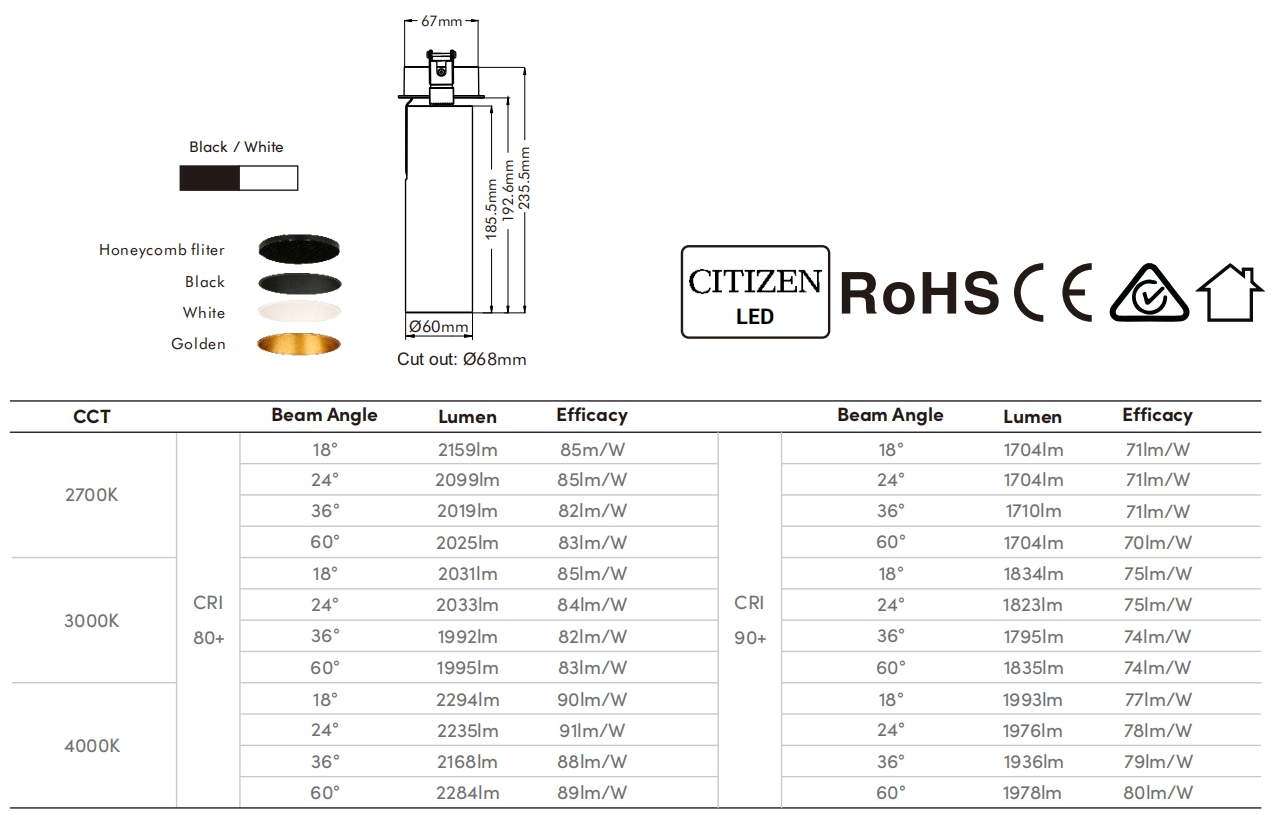

Technical Data | |
Input Voltage/Hz | AC200-240V 50/60Hz |
Output Voltage/Current | DC36V/590mA |
Power | 25W |
Rated Input Current | 0.125A |
PF value | >0.95 |
THD | <15% |
Ingress Protection | IP20 |
Operating Temperature | -10-40℃ |
Dimmability | Triac dimmable with DIMMATE driver |
Optical Data | |
LED Brand | CITIZEN COB LED |
CRI | Ra>80, Ra>90 |
Beam Angle | 18°/24°/36°/60° |
Colour temperature | 2700K/3000K/4000K |
System luminous efficacy up to 91lm/W |
Packaging | |
Box Dimensions | L110×W85×H287mm |
Box Net Weight | 0.785kg |
Box Gross Weight | 0.856kg |
Carton Dimensions | L440×W345×H310mm/15PCS |
Carton Net Weight | 11.78kg |
Carton Gross Weight | 13.64kg |
