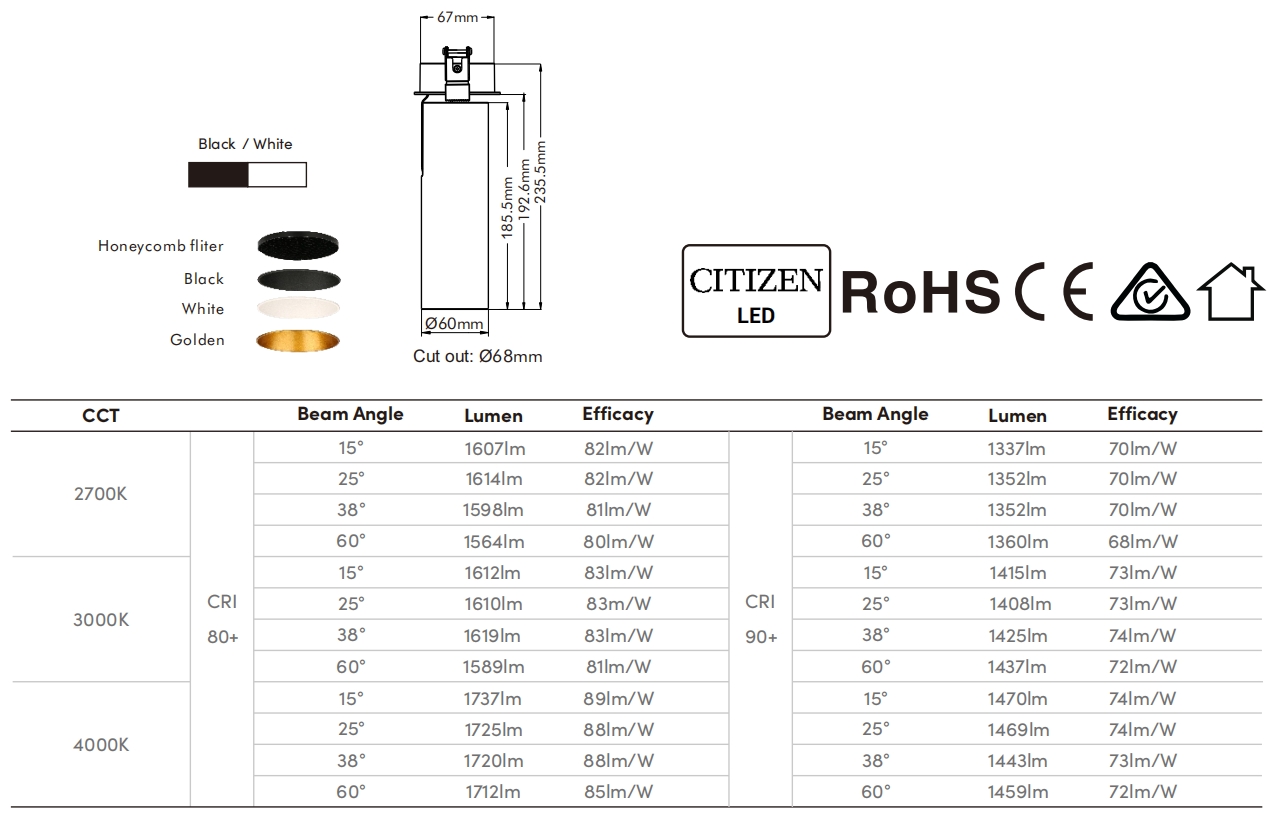

TR06-20-XX-02 20W LED Recessed Spot Light
♦ Flicker-free driver to creates healthy lighting environment.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ Patented recessed case gives better friction on rotation and create pleasant gear noise.
♦ Installation-friendly spring to protect installer and ceiling.
♦ Variety of less-glare optic options.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC36V/470mA |
| Power | 20W |
| Rated Input Current | 0.1A |
| PF value | >0.95 |
| THD | <15% |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |
| Optical Data | |
| LED Brand | CITIZEN COB LED |
| CRI | Ra>80, Ra>90 |
| Beam Angle | 15°/25°/38°/60° |
| Colour temperature | 2700K/3000K/4000K |
| System luminous efficacy up to 89lm/W | |
| Packaging | |
| Box Dimensions | L110×W85×H287mm |
| Box Net Weight | 0.780kg |
| Box Gross Weight | 0.851kg |
| Carton Dimensions | L440×W345×H310mm/15PCS |
| Carton Net Weight | 11.70kg |
| Carton Gross Weight | 13.57kg |
Technical Data Download
