MD10-06-XX-03 6W LED Engine



♦ "F-Connect" design for heatsink and optics.

♦ Fit in most of MR16 LED downlight converters.

♦ Flicker-free external driver.

♦ Compatible with leading and trailing edge phase cut dimmers.

♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC34V/130mA
Power 6W
Rated Input Current 0.03A
THD <35%
PF value >0.85
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver

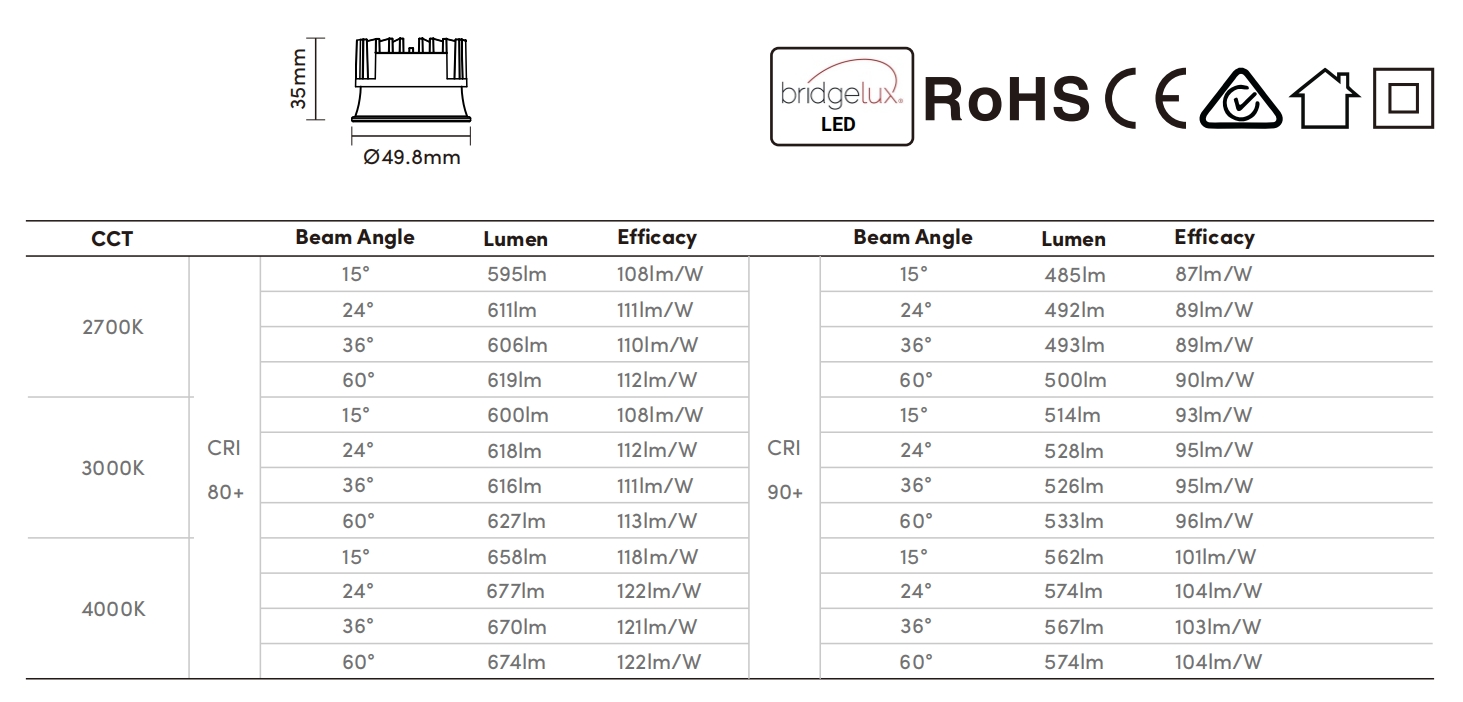

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>80,Ra>90
Beam Angle 15°/24°/36°/60°
Colour temperatures  2700K/3000K/4000K
System luminous efficacy up to 122lm/W



Technical Data Download
