MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine

MD10-09-XX-01 9W LED Engine



♦ "F-Connect" design for heatsink and optics.
♦  Fit in most of MR16 LED downlight converters.
♦  Flicker-free external driver.
♦  Compatible with leading and trailing edge phase cut dimmers.
♦  5-year guarantee.

info@nm-led.com

Tel: +86 75527615054

Whatsapp: 8675527615054

MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 Data Sheet.pdf
MD10-09-XX-01 9W LED Engine
MD10-09-XX-01 (ACTEC) Data Sheet.pdf
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC36V/210mA
Power 9W
Rated Input Current 0.045A
THD <6％
PF value >0.9
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver

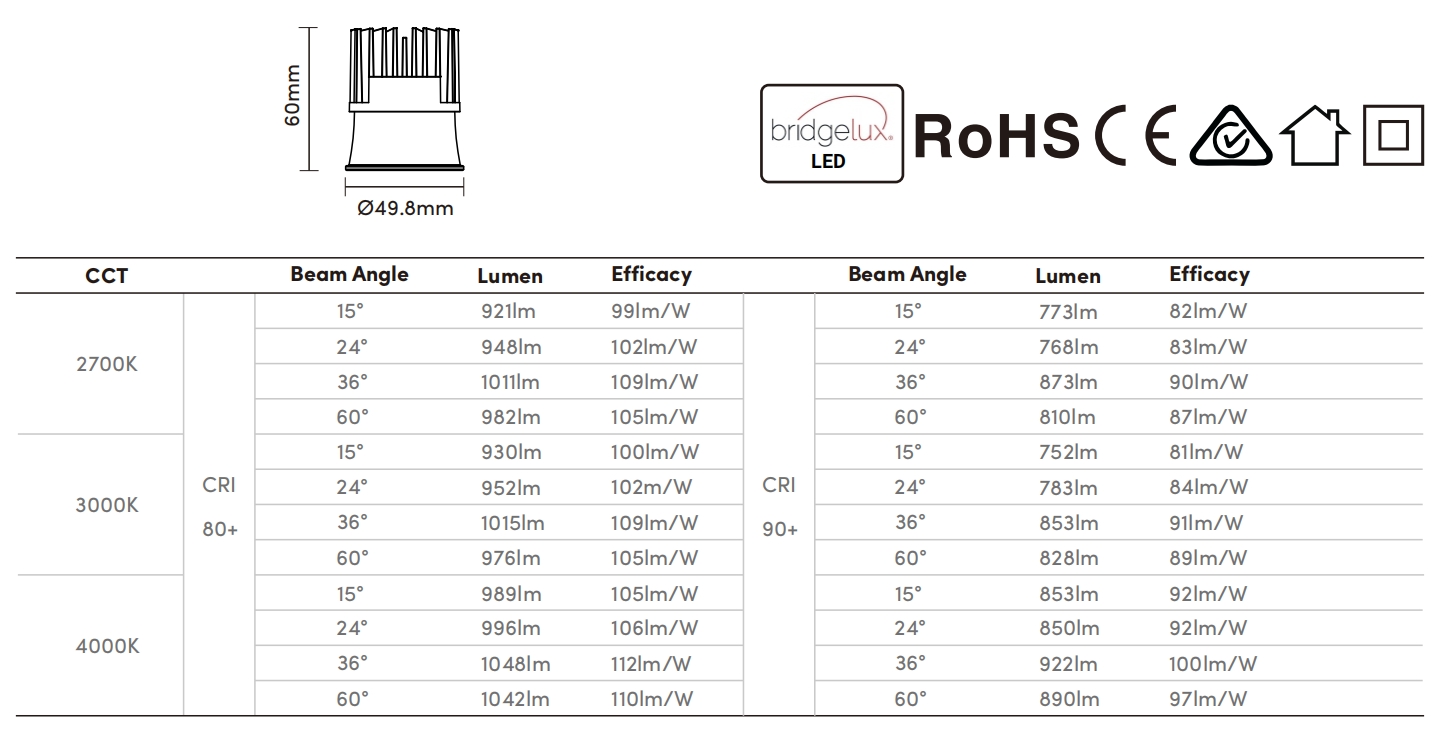

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra＞80，Ra＞90
Beam Angle 15°/24°/36°/60°
Colour temperatures  2700K/3000K/4000K
System luminous efficacy up to 110lm/W



Packaging
Box Dimensions L195×W70×H96mm
Box Net Weight 0.246Kg
Box Gross Weight 0.303Kg
Carton Dimensions  L410×W375×H405mm/40PCS
Carton Net Weight 9.84Kg
Carton Gross Weight 12.12Kg



Technical Data Download

MD10-09-XX-01 Technical Data
MD10-09-XX-01(ACTEC) Technical Data
