♦ F-connect designed in heatsink to interchange optics without tools.
♦ Full spectrum.
♦ Flicker-free internal driver.
♦ Fit in most of MR16 LED downlight converters.
♦ 5-year guarantee.
Technical Data | |
Input Voltage/Hz | AC200-240V 50/60Hz |
Output Voltage/Current | DC35V/240mA |
Power | 10W |
Rated Input Current | 0.05A |
THD | <20% |
PF value | >0.9 |
Ingress Protection | IP40 |
Operating Temperature | -10-40℃ |
Dimmability | Triac dimmable with DIMMATE driver |

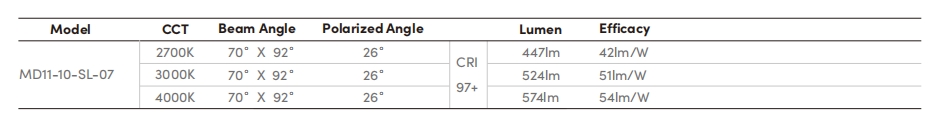

Optical Data | |
LED Brand | Sunlike COB LED |
CRI | Ra>97 |
Beam Angle | 70°×92° |
Polarized Angle | 26° |
Colour temperature | 2700K/3000K/4000K |
System luminous efficacy up to 54lm/W |
Packaging | |
Box Dimensions | L70×W70×H145mm |
Box Net Weight | 0.208kg |
Box Gross Weight | 0.241kg |
Carton Dimensions | L440×W365×H310mm/60PCS |
Carton Net Weight | 12.48kg |
Carton Gross Weight | 15.30kg |
