MD15-10-XX-04 10W LED Engine
♦ "F-Connect" design for heatsink and optics.
♦ Fit in most of MR16 LED downlight converters.
♦ Flicker-free internal driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC33V/240mA |
| Power | 10W |
| Rated Input Current | 0.05A |
| THD | ＜20% |
| PF value | ＞0.9 |
| Ingress Protection | IP40 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |

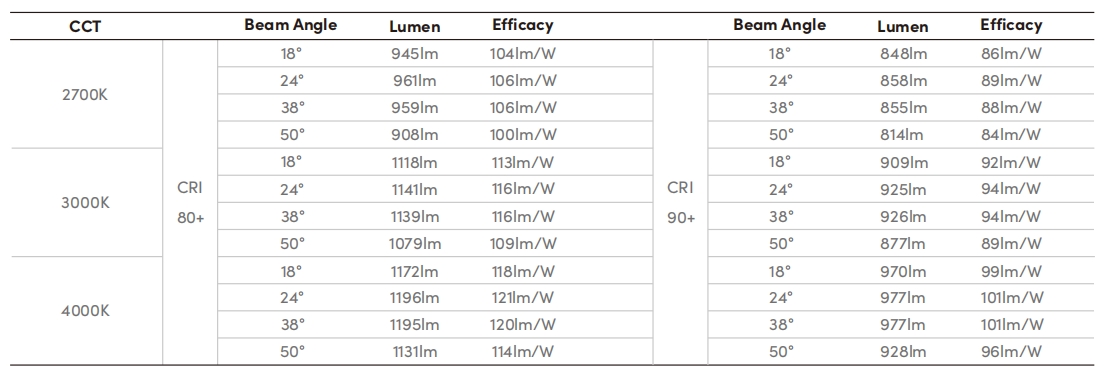

| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>80, Ra>90 |
| Beam Angle | 18°/24°/38°/50° |
| Colour temperature | 2700K/3000K/4000K |
| System luminous efficacy up to 121lm/W | |
| Packaging | |
| Box Dimensions | L70×W70×H145mm |
| Box Net Weight | 0.219kg |
| Box Gross Weight | 0.253kg |
| Carton Dimensions | L440×W365×H310mm/60PCS |
| Carton Net Weight | 13.14kg |
| Carton Gross Weight | 15.78kg |
Technical Data Download
