MD10-13-DW-14 13W LED Engine
♦ F-connect designed in heatsink to interchange optics without tools.
♦ Warm dim
♦ Flicker-free external driver.
♦ Fit in AR111 and CDM111 standard downlight converters.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC33V/300mA |
| Power | 13W |
| Rated Input Current | 0.065A |
| THD | ＜20% |
| PF value | ＞0.9 |
| Ingress Protection | IP40 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |
| LED and Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | >95 |
| SDCM | <6 |

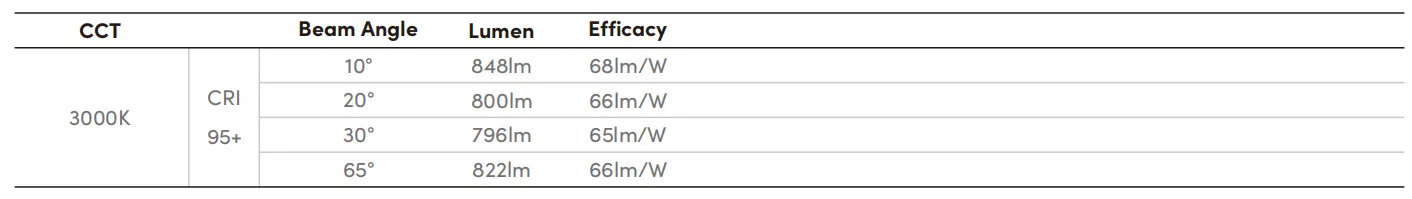

| Beam Angle | 10°/20°/30°/65° |
| Colour temperature | 2000K-3000K |
| System luminous efficacy up to 68lm/W | |
| Packaging | |
| Box Dimensions | L130×W130×H140mm |
| Box Net Weight | 0.417kg |
| Box Gross Weight | 0.482kg |
| Carton Dimensions | L540×W540×H300mm/32PCS |
| Carton Net Weight | 13.4kg |
| Carton Gross Weight | 16.5kg |
Technical Data Download
