MD10-13-TW-04 LED Engine
♦ "F-Connect" design for heatsink and optics.
♦ Fit in most of MR16 LED downlight converters.
♦ Flicker-free external driver.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | DC35V |
| Output Voltage/Current | / |
| Power | / |
| Rated Input Current | 0.3A |
| THD | ＜20% |
| PF value | 1 |
| Ingress Protection | IP40 |
| Operating Temperature | -10-40℃ |
| Dimmability | Wireless or DALI DT8 control |

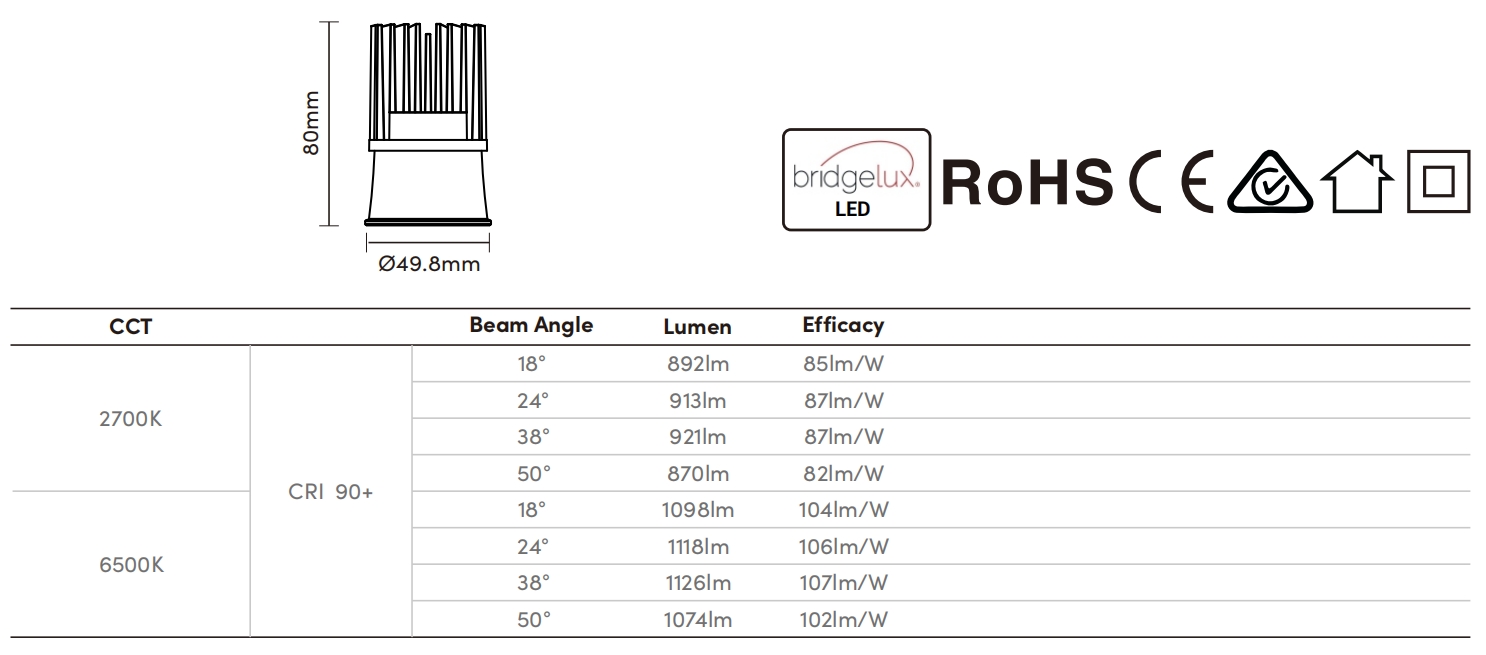

| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>90 |
| Beam Angle | 18°/28°/38°/50° |
| Colour temperature | 2700K-6500K |
| System luminous efficacy up to 116m/W | |
| Packaging | |
| Box Dimensions | L70×W70×H96mm |
| Box Net Weight | 0.152kg |
| Box Gross Weight | 0.174kg |
| Carton Dimensions | L365×W365×H405mm/100PCS |
| Carton Net Weight | 15.2kg |
| Carton Gross Weight | 17.41kg |
Technical Data Download
MD10-13-TW-04 Technical DataRelated Products
