MD14-06-DW-01 5.5W LED Engine
♦ Low profile 37mm height.
♦ Dim to warm.
♦ With dimmable internal driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ Fit in most of MR16 LED downlight converters.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC220-240V 50/60Hz |
| Output Voltage/Current | DC36V/130mA |
| Power | 5.5W |
| Rated Input Current | 0.03A |
| THD | ＜45% |
| PF value | ＞0.7 |
| Ingress Protection | IP20 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |

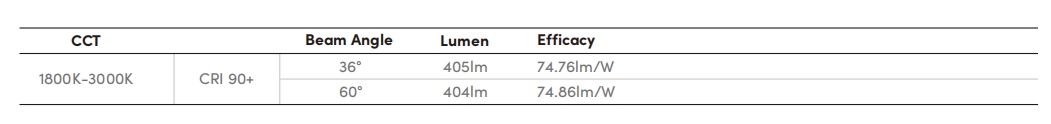

| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>90 |
| Beam Angle | 36°/60° |
| Colour temperature | 1800K-3000K |
| System luminous efficacy up to 74.86lm/W | |
| Packaging | |
| Box Dimensions | L60×W60×H50mm |
| Box Net Weight | 0.089kg |
| Box Gross Weight | 0.104kg |
| Carton Dimensions | L320×W320×H220mm/100PCS |
| Carton Net Weight | 8.900kg |
| Carton Gross Weight | 12.20kg |
Technical Data Download
