MD10-06-DW-13 6W LED Engine




♦ F-connect designed in heatsink to interchange optics without tools.
♦ Warm dim.
♦ Flicker-free external driver.
♦ Fit in AR111 and CDM111 standard downlight converters.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

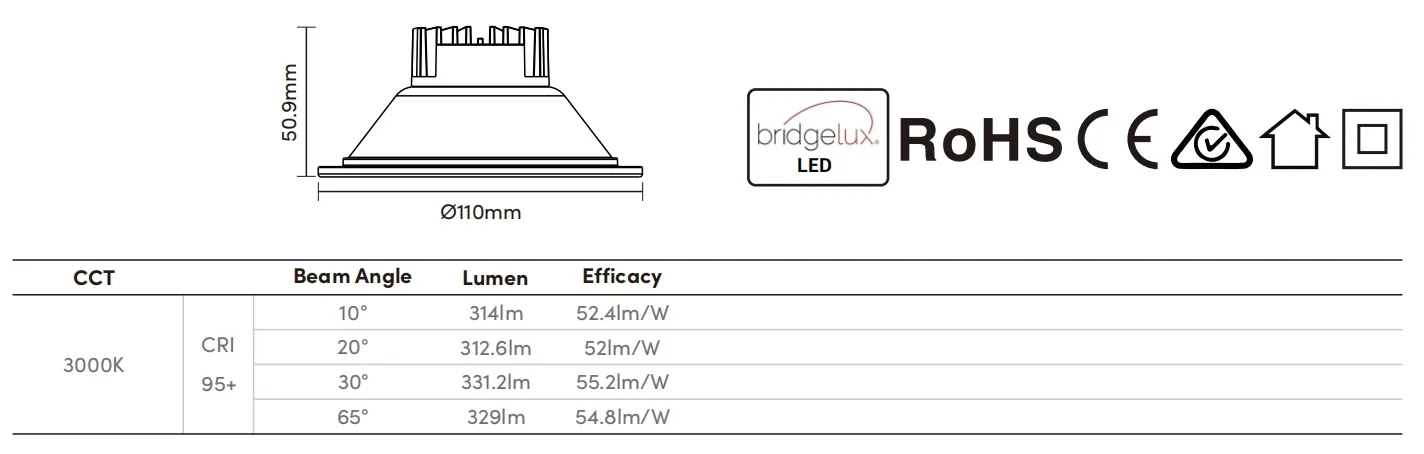

Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC17V/270mA
Power 6W
Rated Input Current 0.03A
THD <35%
PF value >0.85
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver



Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>95
Beam Angle  10°/20°/30°/65°
Colour temperature 2000K-3000K
System luminous efficacy up to 55.2lm/W



Packaging
Box Dimensions L130×W130×H105mm
Box Net Weight 0.33kg
Box Gross Weight 0.39kg
Carton Dimensions L540×W540×H230mm/32PCS
Carton Net Weight 10.56kg
Carton Gross Weight 13.5kg
