MD10-06-XX-09 6W LED Engine
♦ F-connect designed in heatsink to interchange optics without tools.
♦ Flicker-free external driver.
♦ Fit in most of MR16 LED downlight converters.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC34V/130mA |
| Power | 6W |
| Rated Input Current | 0.03A |
| THD | ＜35% |
| PF value | ＞0.85 |
| Ingress Protection | IP40 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |

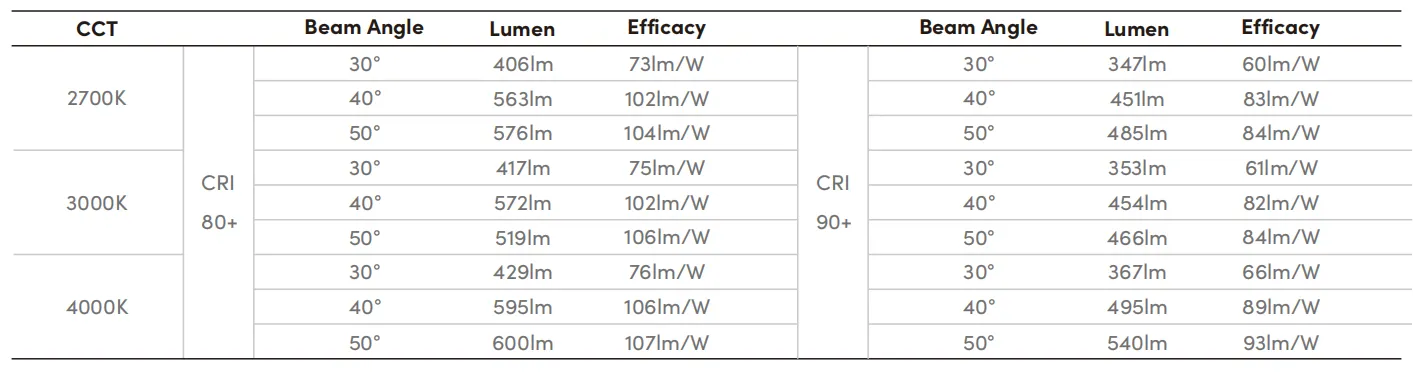

| LED and Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | >80, >90 |
| SDCM | <6 |
| Beam Angle | 30°/40°/50° |
| Colour temperature | 2700K/3000K/4000K |
| System luminous efficacy up to 107lm/W | |
| Packaging | |
| Box Dimensions | L200×W70×H95mm |
| Box Net Weight | 0.226kg |
| Box Gross Weight | 0.280kg |
| Carton Dimensions | L420×W370×H210mm/20PCS |
| Carton Net Weight | 5.52kg |
| Carton Gross Weight | 6.6kg |
Technical Data Download
