MD16-06-DW-01 6W LED Engine




♦ Warm dim.
♦ Fit in most of MR16 downlight converters.
♦ 3-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V   50/60Hz
Output Voltage/Current DC18V/270mA
Power 6W
Rated Input Current 0.03A
THD <40%
PF value >0.8
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver

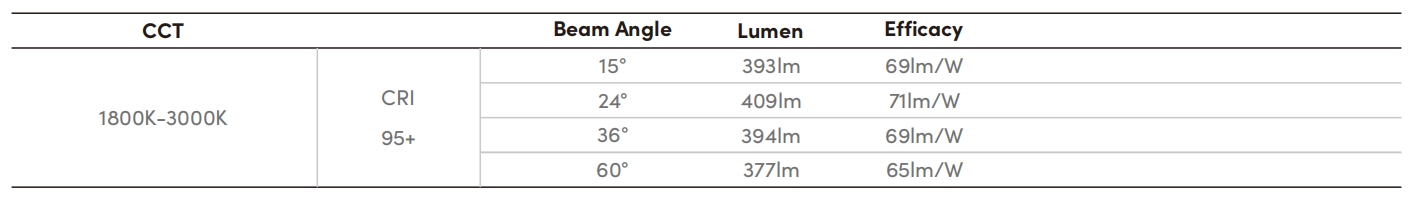

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>95
Beam Angle 15°/24°/36°/60°
Colour temperature 1800K-3000K
System luminous efficacy up to 71lm/W



Packaging
Box Dimensions L130×W80×H110mm
Box Net Weight 0.238kg
Box Gross Weight 0.293kg
Carton Dimensions L540×W415×H350mm/60PCS
Carton Net Weight 14.28kg
Carton Gross Weight 18.70kg

Technical Data Download
