MD20-06-DW-04 6W LED Engine




♦ "F-Connect" design for heatsink and optics.
♦ Flicker-free internal driver.
♦ Low profile.
♦ Fit in most of MR16 LED downlight converters.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC18V/220mA
Power 6W
Rated Input Current 0.027A
PF value >0.83
THD <20%
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver

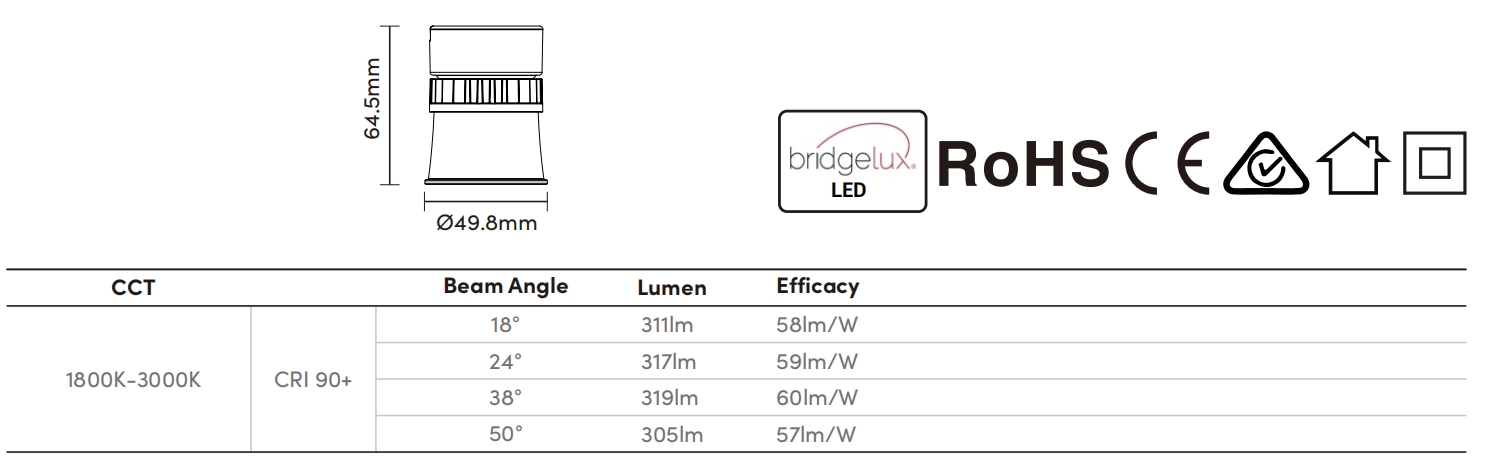

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>90
Beam Angle 18°/28°/38°/50°
Colour temperature 1800K-3000K
System luminous efficacy up to 53lm/W



Packaging
Box Dimensions L60×W60×H100mm
Box Net Weight 0.143kg
Box Gross Weight 0.164kg
Carton Dimensions L320×W320×H425mm/100PCS
Carton Net Weight 14.300kg
Carton Gross Weight 14.900kg
