MD12-09-DW-01 9W LED Engine
♦ Low profile design suitable for low ceiling and IP65 waterproof ideal for bathroom area.
♦ Bridgelux LED adopted, dim to warm available.
♦ Fit in most of MR16 LED downlight converter.
♦ Dimming capability. 1. Suits triac dimmers including OPUS, Clipsal, HPM, Niko, Lumeo Domus, Lumeo Eco; 2. DALI dimming.
♦The driver with CE, RCM and SAA certification.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description

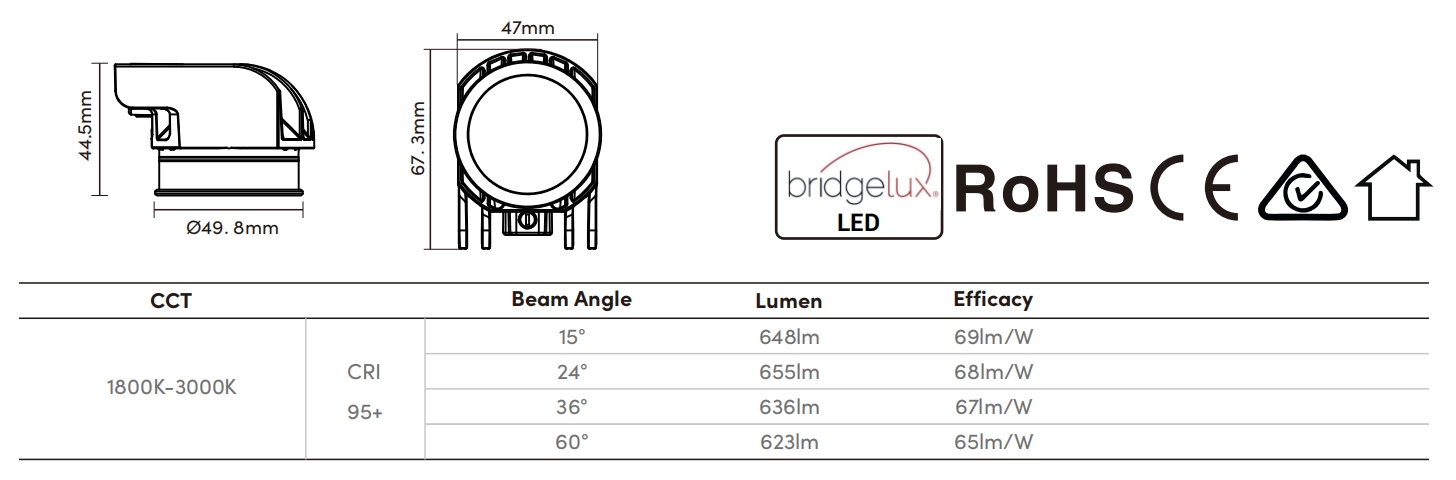

| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC33V/230mA |
| Power | 9W |
| Rated Input Current | 0.045A |
| PF value | ＞0.9 |
| Ingress Protection | IP65 |
| Operating Temperature | -10-40℃ |
| Dimmability | Triac dimmable with DIMMATE driver |
| Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | Ra>95 |
| Beam Angle | 15°/24°/36°/60° |
| Colour temperature | 1800K-3000K |
| System luminous efficacy up to 69lm/W | |
| Packaging | |
| Box Dimensions | L145×W145×H50mm |
| Box Net Weight | 0.27kg |
| Box Gross Weight | 0.33kg |
| Carton Dimensions | L600×W455×H275mm/60PCS |
| Carton Net Weight | 16.2kg |
| Carton Gross Weight | 20.3kg |
Technical Data Download
