MD10-06-TW-11 LED Engine




♦ F-connect designed in heatsink to interchange optics without tools.
♦ Tunable.
♦ Flicker-free external driver.
♦ Fit in AR111 and CDM111 standard downlight converters.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description
Technical Data
Input Voltage/Hz DC33V
Output Voltage/Current /
Power /
Rated Input Current 0.13A
THD <35%
PF value 1
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Wireless or DALI DT8 control

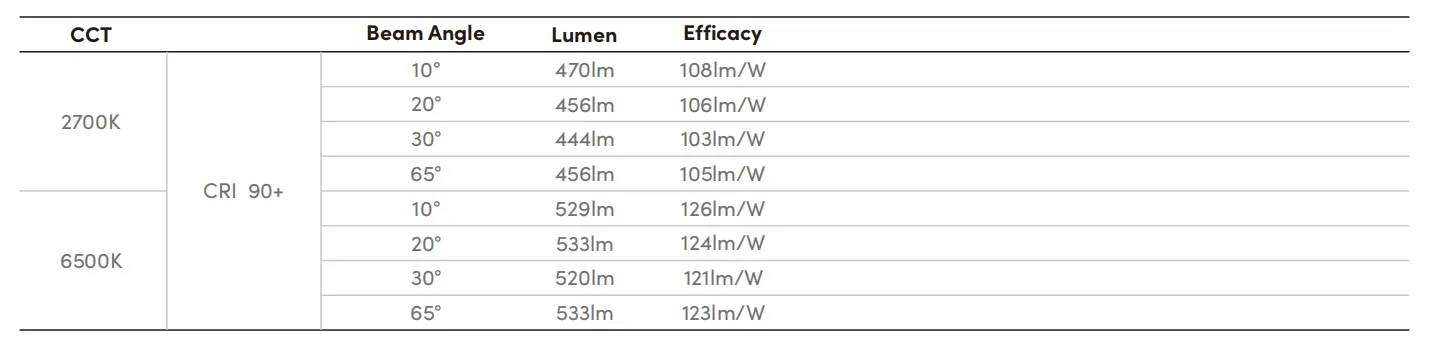

Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>90
Beam Angle  10°/20°/30°/65°
Colour temperature 2700K-6500K
System luminous efficacy up to 113.6lm/W



Packaging
Box Dimensions L130×W130×H85mm
Box Net Weight 0.194kg
Box Gross Weight 0.26kg
Carton Dimensions L540×W540×H200mm/32PCS
Carton Net Weight 6.2kg
Carton Gross Weight 9.5kg
