MD10-10-XX-03 10W LED Engine



♦ "F-Connect" design for heatsink and optics.
♦ Fit in most of MR16 LED downlight converters.
♦ Flicker-free external driver.
♦ Compatible with leading and trailing edge phase cut dimmers.
♦ 5-year guarantee.

description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

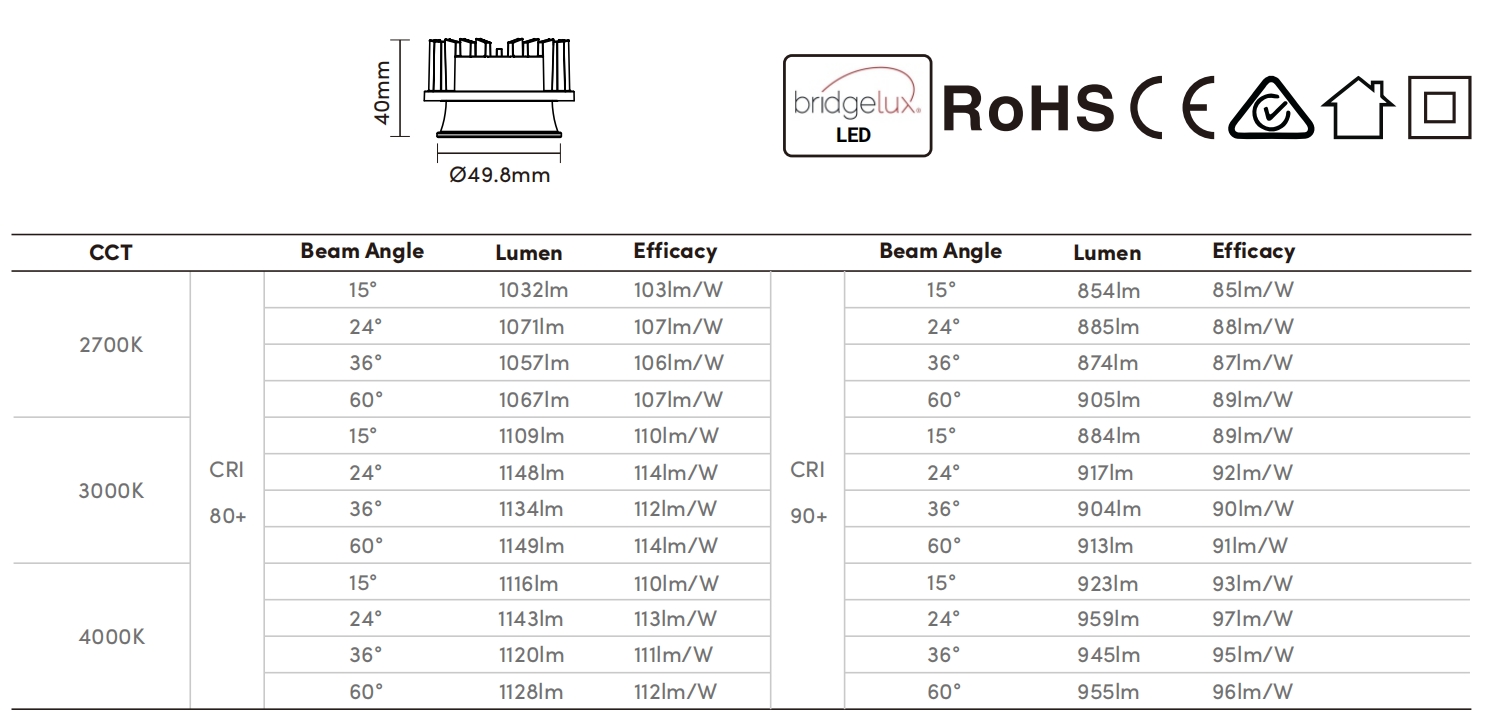

Technical Data
Input Voltage/Hz AC200-240V 50/60Hz
Output Voltage/Current DC36V/210mA
Power 10W
Rated Input Current 0.05A
THD <20%
PF value >0.9
Ingress Protection IP40
Operating Temperature -10-40℃
Dimmability Triac dimmable with DIMMATE driver



Optical Data
LED Brand  Bridgelux COB LED
CRI  Ra>80,Ra>90
Beam Angle 15°/24°/36°/60°
Colour temperatures  2700K/3000K/4000K
System luminous efficacy up to 112lm/W

Technical Data Download
