♦ Comply with the concept of healthy lighting with less blue light.
♦ Fit in most of MR16 downlight converters.
♦ 3-year guarantee.
Technical Data | |
Input Voltage/Hz | AC200-240V 50/60Hz |
Output Voltage/Current | DC37V/290mA |
Power | 13W |
Rated Input Current | 0.065A |
THD | <25% |
PF value | >0.9 |
Ingress Protection | IP54 |
Operating Temperature | -10-40℃ |
Dimmability | Triac dimmable with DIMMATE driver |

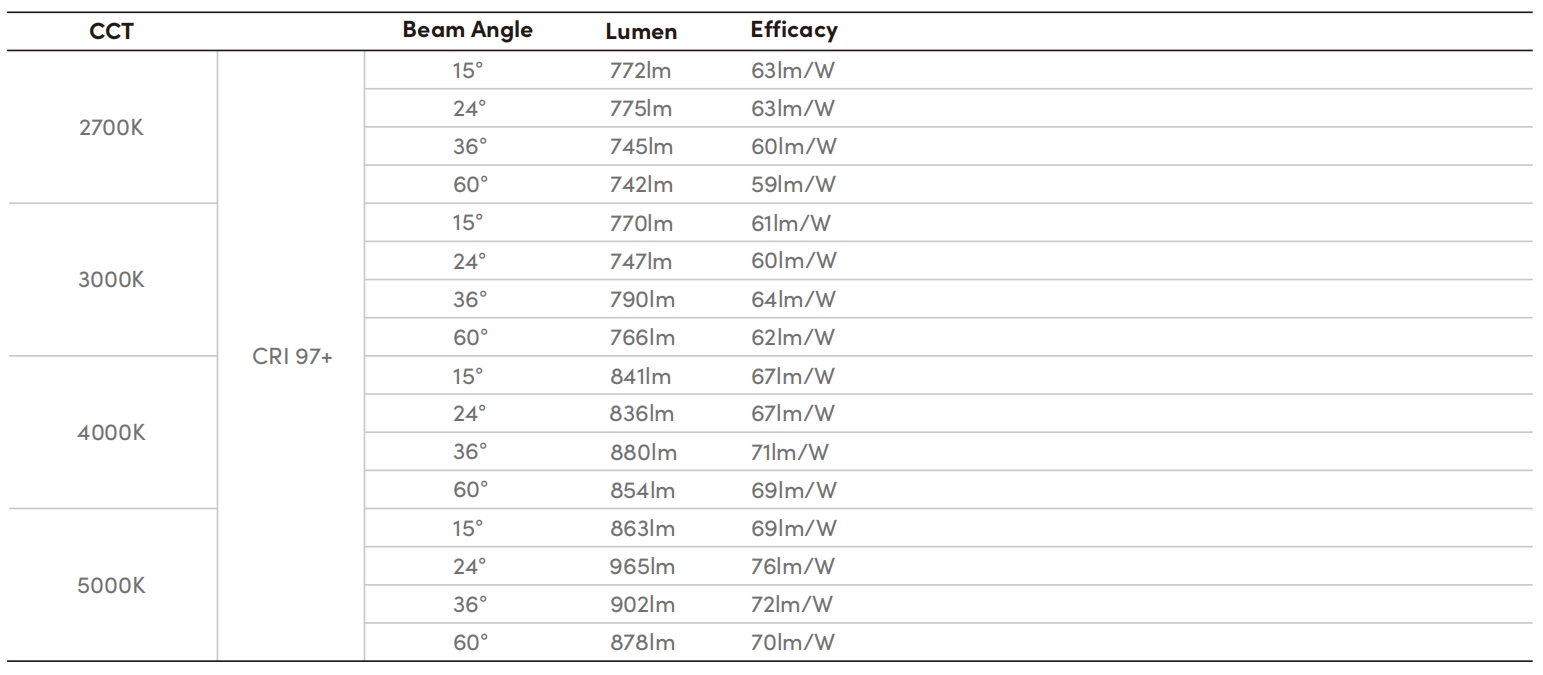

Optical Data | |
LED Brand | SEOUL COB LED |
CRI | Ra>97 |
Beam Angle | 15°/24°/36°/60° |
Colour temperature | 2700K/3000K/4000K/5000K |
System luminous efficacy up to 86lm/W |
Packaging | |
Box Dimensions | L130×W80×H110mm |
Box Net Weight | 0.288kg |
Box Gross Weight | 0.345kg |
Carton Dimensions | L540×W415×H350mm/60PCS |
Carton Net Weight | 17.28kg |
Carton Gross Weight | 21.31kg |
