FUSION-MD23-AHD-013-COB-18SC 13W LED Engine
♦ "F-connect" design for heatsink and optics.
♦ Low profile.
♦ Fit in most of MR16 LED downlight converters.
♦ DALI Dimmable.
♦ 5-year guarantee.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Description
| Technical Data | |
| Input Voltage/Hz | AC200-240V 50/60Hz |
| Output Voltage/Current | DC30-40V/300mA DC30-40V/230mA |
| Power | 13W(Max) | 10W(Min) |
| Rated Input Current | 0.054A |
| PF value | >0.9 |
| THD | <25% |
| Ingress Protection | IP65 |
| Operating Temperature | -10-40℃ |
| Dimmability | DALI dimmable with DIMMATE driver |
| L70/B50 at 25℃ | >105000H |
| L90/B10 at 25℃ | >105000H |

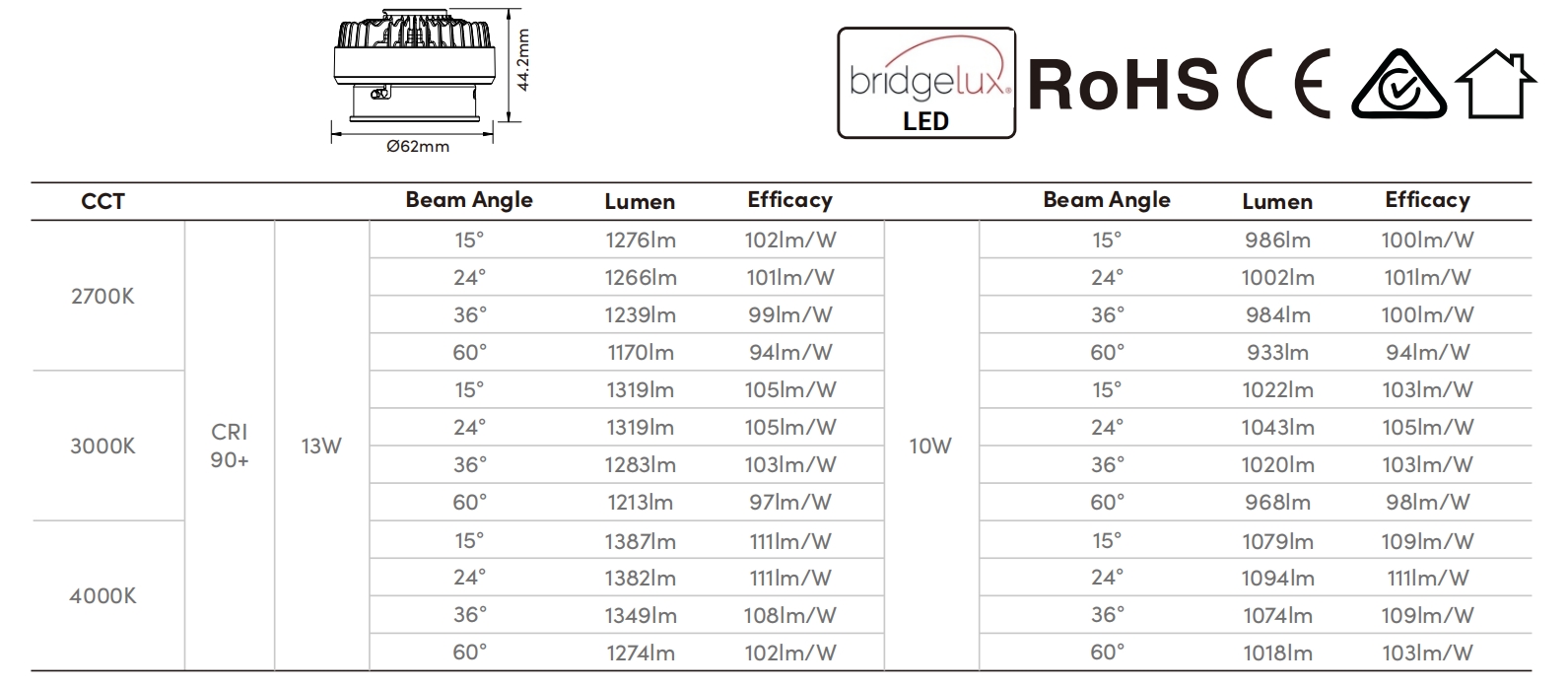

| LED and Optical Data | |
| LED Brand | Bridgelux COB LED |
| CRI | >90 |
| SDCM | <6 |
| Beam Angle | 15°/24°/36°/60° |
| Colour temperatures | 2700K/3000K/4000K |
| System luminous efficacy up to 111lm/W | |
| Packaging | |
| Box Dimensions | L145×W108×H68mm |
| Box Net Weight | 0.279Kg |
| Box Gross Weight | 0.318Kg |
| Carton Dimensions | L522×W305×H160mm/20PCS |
| Carton Net Weight | 5.58Kg |
| Carton Gross Weight | 7.86Kg |
Technical Data Download
